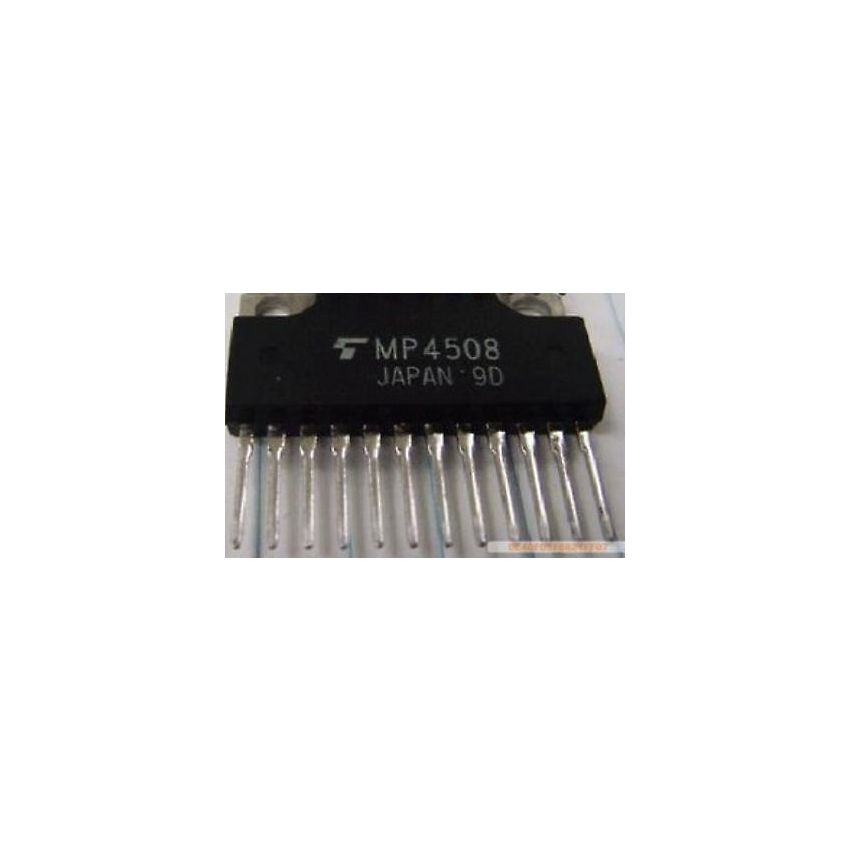

MP4508,High Power Transistor Module,-5A 100V,PNP Darlington,SIP-12

The MP4508 is a high-power silicon PNP Darlington Transistor Module designed for industrial applications that require robust and reliable switching. With its high current gain and low saturation voltage, this module is ideal for hammer drives, pulse motor drives, and inductive load switching. Encased in a SIP 12-pin package with an isolated heat sink, the MP4508 offers excellent thermal management and enhanced durability for demanding operations.

This module features a maximum collector current of -5A, a collector-emitter voltage rating of -100V, and a junction temperature range up to 150C. The built-in freewheeling diodes provide additional safety and efficient operation in motor control and industrial systems. Manufactured by Toshiba, this module is an excellent choice for high-power switching applications that require precision and stability.

Key Features :

• High Voltage Capability: Supports up to -100V collector-emitter voltage for industrial-grade applications.
• Robust Current Handling: -5A maximum collector current for high-power circuits.
• Integrated Freewheeling Diode: Provides additional protection for inductive load applications.
• Efficient Thermal Management: Heat sink isolated to the case, ensuring optimal heat dissipation.
• Compact Package: SIP 12-pin configuration for easy integration and reliability.
• Wide Operating Temperature Range: Supports -55C to 150C for diverse environmental conditions.
