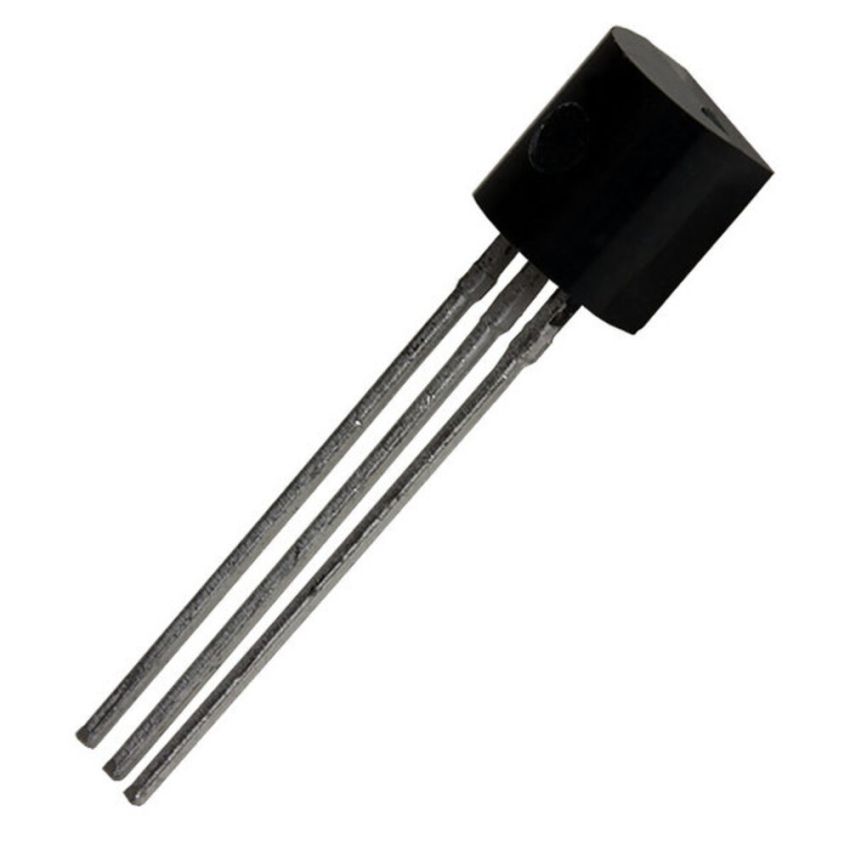

PN3565 ,NPN Transistor, 25V Collector-Emitter Voltage, TO-92 Package + Low Noise Performance

The PN3565 is a silicon NPN epitaxial planar transistor designed for low noise applications, making it an ideal choice for small signal amplification, particularly in audio frequency applications. Manufactured by Central Semiconductor, this transistor is encapsulated in a TO-92 package, which is compact and easy to work with, especially in breadboard and PCB setups.

This transistor supports a maximum collector-emitter voltage of 25V and a collector-base voltage of 30V, with a continuous collector current rating of 50mA, making it suitable for low-power switching and signal amplification tasks. Additionally, it has a power dissipation rating of 625mW, providing stability and performance in low to moderate power circuits.

With a low noise figure, the PN3565 ensures signal clarity, making it well-suited for applications where noise minimization is essential, such as in preamplifiers and other audio equipment. Its wide operating temperature range from -65C to +150C allows it to be used in diverse environmental conditions without performance degradation.

Key Features :

• Voltage Ratings: Collector-Emitter Voltage up to 25V and Collector-Base Voltage up to 30V, suitable for various low-power switching and amplification applications.
• Current Capacity: Supports a continuous collector current of 50mA, making it versatile for small signal amplification and switching.
• Power Dissipation: Rated power dissipation of 625mW ensures reliable performance in low-power circuits.
• TO-92 Package: Compact TO-92 case with standard lead configuration for easy integration into breadboards and PCBs.
• Low Noise Performance: Designed for low noise, suitable for audio frequency amplification where signal clarity is essential.
• Wide Operating Temperature Range: Can operate reliably within a range of -65C to +150C, allowing use in various environmental conditions.
