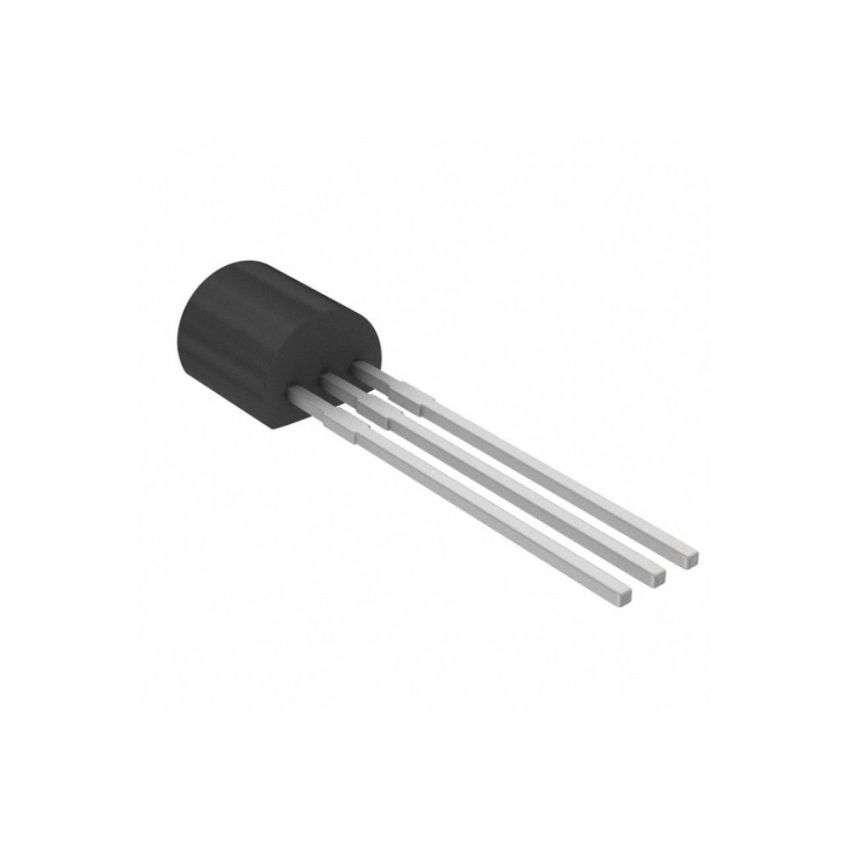

LM336-2.5, Voltage Reference Diode, TO-92

The LM336-2.5 is a precision 2.5V shunt regulator diode designed for applications requiring a stable and low-temperature-coefficient voltage reference. Encased in a TO-92 package, it operates similarly to a 2.5V Zener diode but with enhanced performance characteristics, including low dynamic impedance and the ability to adjust the reference voltage and temperature coefficient via a third terminal. This makes it ideal for use in digital voltmeters, power supplies, and operational amplifier circuits.

• Precision 2.5V Output: Provides a stable 2.5V reference voltage for various applications.
• Low Temperature Coefficient: Ensures minimal voltage variation over a wide temperature range.
• Wide Operating Current Range: Operates effectively between 400 µA to 10 mA.
• Low Dynamic Impedance: Exhibits a dynamic impedance of 0.2 Ω, ensuring stable performance under varying loads.
• Adjustable Voltage and Temperature Coefficient: Third terminal allows for fine-tuning of the reference voltage and temperature coefficient.
• Fast Turn-On Time: Quickly reaches stable operating conditions, suitable for time-sensitive applications.
