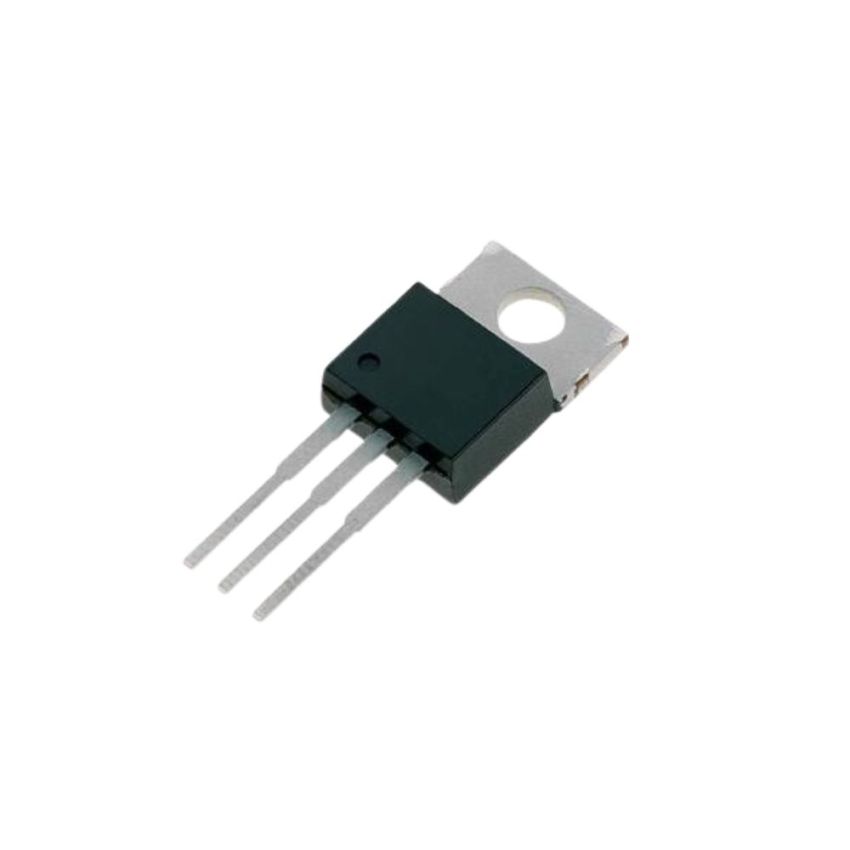

TIC116D, Silicon Controlled Rectifier, TO-220 Package

The TIC116D is a silicon controlled rectifier (SCR) designed for power control applications. With a continuous on-state current rating of 8A and the ability to handle surge currents up to 80A, it is suitable for use in motor controls, light dimmers, and other AC switching applications. The device's glass passivated wafer ensures long-term reliability, while its low gate trigger current allows for easy interfacing with control circuits. The TO-220 package offers efficient thermal management and straightforward integration into various designs.

• High On-State Current: Capable of handling a continuous on-state current of 8A, suitable for various power control applications.
• High Surge Current Capability: Withstands surge currents up to 80A, providing robustness against transient conditions.
• Glass Passivated Wafer: Enhances reliability and stability by protecting the junctions from environmental factors.
• High Off-State Voltage: Available in voltage ratings of 400V to 800V, accommodating a range of high-voltage applications.
• Low Gate Trigger Current: Features a maximum gate trigger current (I_GT) of 20mA, allowing for efficient triggering with minimal gate drive requirements.
• TO-220 Package: Provides efficient heat dissipation and ease of mounting in various circuit designs.
