2SD1024,NPN Darlington Transistor,100V, 8A

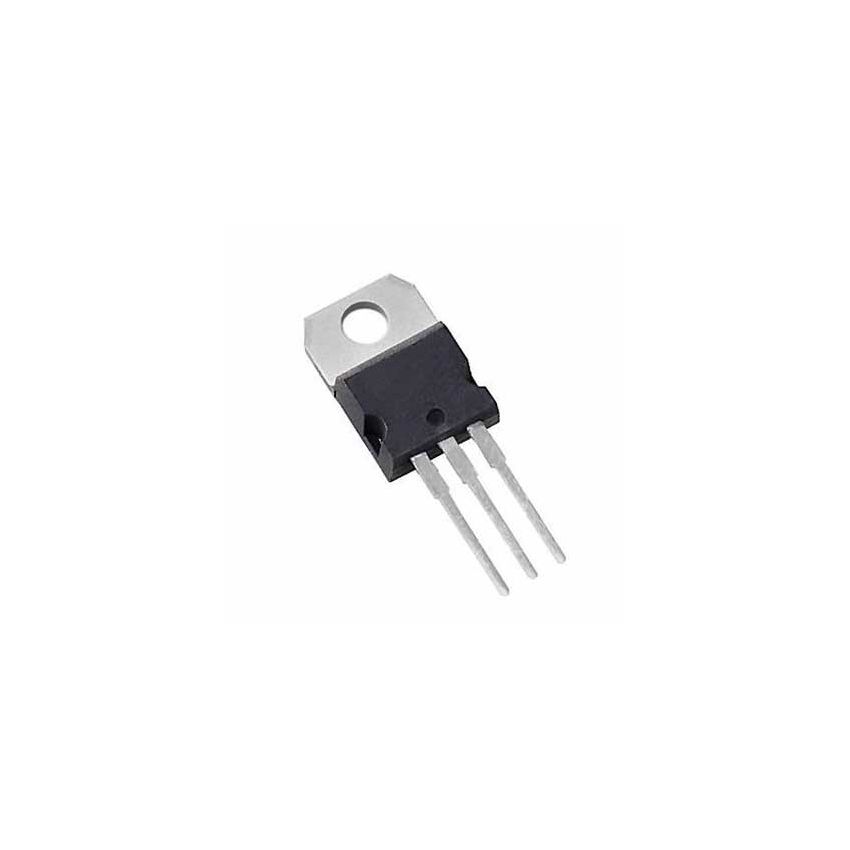

The 2SD1024 NPN Darlington Transistor in a TO-220-3 package is a high-performance transistor designed for power amplification and high-current switching applications. With a maximum collector current of 8A and a collector-emitter voltage of 100V, this transistor provides excellent performance for demanding electronic designs. Its Darlington configuration offers extremely high current gain, making it ideal for circuits requiring efficient amplification with minimal base current.

Key features of the 2SD1024 include its low collector-emitter saturation voltage, high current gain (up to 30,000), and fast switching times. Additionally, its robust construction allows for efficient heat dissipation, ensuring reliable operation in high-power environments. With a junction temperature range from -55°C to +150°C and a power dissipation capacity of up to 50W, the 2SD1024 is suitable for a wide variety of industrial and consumer applications, including motor drivers, power regulators, and audio amplifiers.

Key Features :

• High Collector Current (Ic): Supports up to 8A for demanding power applications.
• High Voltage Capability: Handles up to 100V collector-emitter voltage (Vceo).
• Exceptional Current Gain: Darlington configuration achieves a current gain (hFE) up to 30,000.
• Efficient Heat Dissipation: Features a thermal resistance of 2.5°C/W for better thermal management.
• Fast Switching Characteristics: Short turn-on time (2us) and fall time (3us) ensure quick response.
• Robust Operating Range: Operates reliably in temperatures from -55C to +150C.
