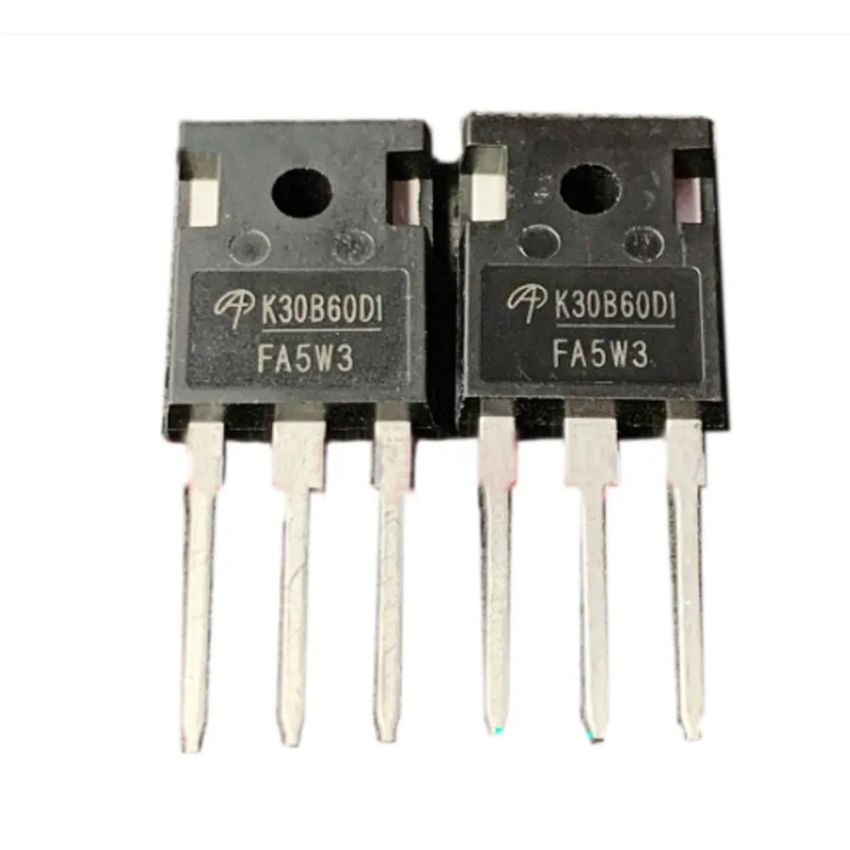

AOK30B60D1 , Alpha IGBT with Diode ,600V 30A Alpha IGBT with Diode - TO-247-3 Package

The AOK30B60D1 is a 600V, 30A insulated gate bipolar transistor (IGBT) with an integrated fast recovery diode. Designed for high-efficiency switching applications, it offers excellent switching performance, reduced conduction losses, and robust short-circuit capability. This IGBT is ideal for industrial applications such as welding machines, solar inverters, and uninterruptible power supplies (UPS).

It features a high-speed switching capability with low gate drive requirements, ensuring reliable operation in high-frequency designs. The integrated diode enhances performance by minimizing switching losses, providing additional benefits in resonant and hard-switching topologies.

Encased in a TO-247-3 package, the AOK30B60D1 ensures optimal heat dissipation, allowing it to handle high power levels efficiently. Its compact design allows for easy integration into existing systems, making it an excellent choice for engineers working on demanding power electronics applications.

Whether you're working on renewable energy systems or industrial control units, this IGBT delivers reliable performance in a wide range of environments.

Key Features :

• High Voltage Rating: 600V collector-emitter voltage ensures reliable operation in high-voltage circuits.
• High Current Capacity: 30A continuous collector current rating at 100°C for handling demanding applications.
• Fast Switching: Optimized for fast switching speeds, reducing power losses in high-frequency applications.
• Integrated Diode: Co-packaged diode for minimizing component count and improving system performance.
• Thermal Efficiency: TO-247-3 package provides effective thermal dissipation for high-power applications.
• Short Circuit Protection: Robust short circuit withstand time of 10 µs for enhanced durability in fault conditions.
