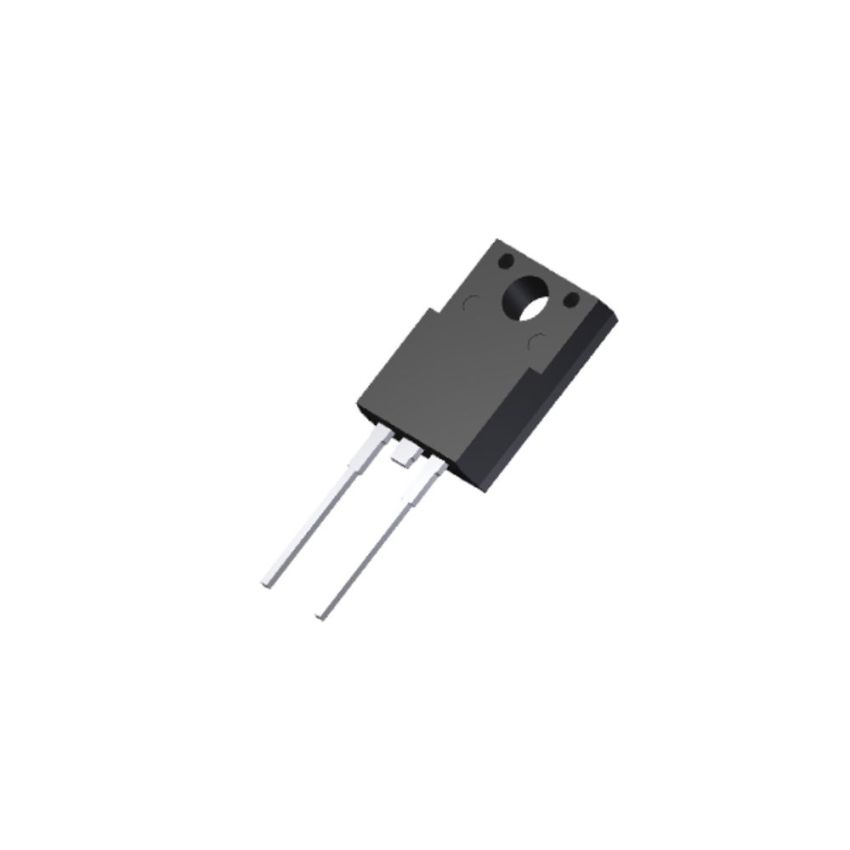

ER806F, Super-Fast Glass Passivated Rectifier, TO-220F-2 Package,8A

The ER806F is a super-fast glass passivated rectifier designed for high-efficiency rectification in various applications. With a peak reverse voltage of 600V and an average forward current of 8.0A, it is suitable for use in power supplies, inverters, and other high-speed switching applications. The device's super-fast switching characteristics and low forward voltage drop enhance overall system efficiency. Its high surge current capability makes it reliable under transient conditions.

• High Reverse Voltage – Withstands up to 600V peak reverse voltage.
• High Forward Current Capacity – Supports up to 8.0A average forward current.
• Super-Fast Switching – Designed for rapid switching applications, enhancing efficiency.
• Low Forward Voltage Drop – Exhibits a forward voltage drop of 1.7V at 8.0A, reducing power loss.
• Low Reverse Leakage Current – Maintains a reverse leakage current of 10µA at 600V, contributing to overall efficiency.
• High Surge Current Capability – Withstands non-repetitive peak surge currents up to 150A, suitable for applications with transient high-current demands.
