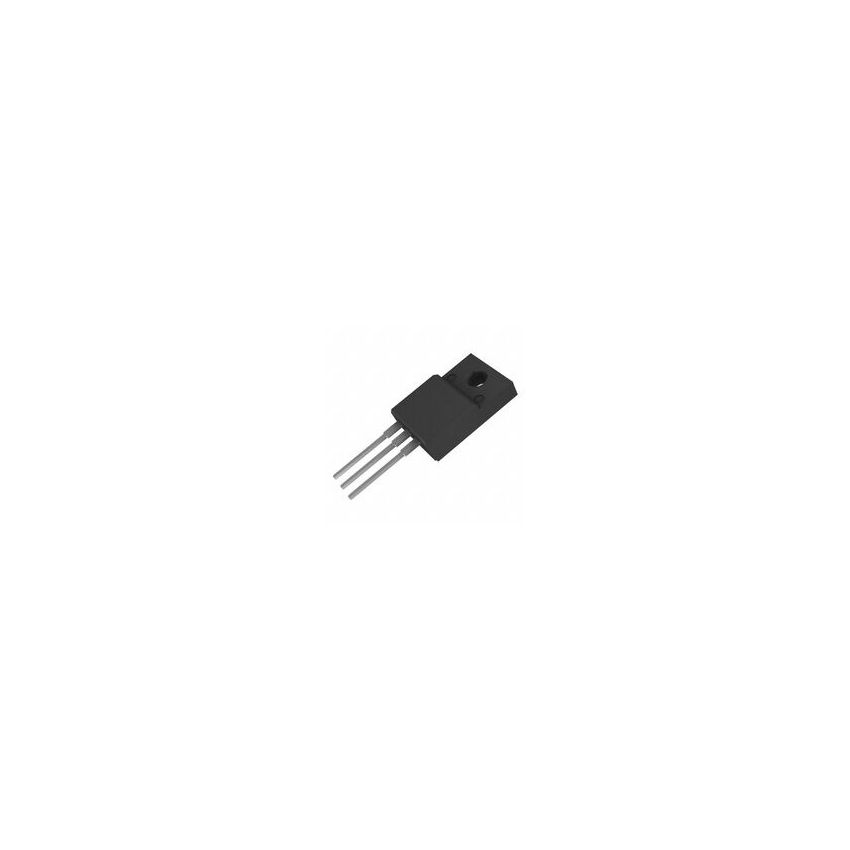

FCPF380N60E, N-Channel MOSFET, TO-220F-3 Package

The FCPF380N60E is an N-Channel MOSFET designed for high-voltage and high-speed power switching applications. With a drain-source voltage rating of 600V and continuous drain current capability of 10.2A, it is well-suited for use in power supplies, motor control, and other high-power circuits. The device's low on-resistance and fast switching characteristics contribute to efficient performance, while the fully isolated TO-220F-3 package ensures safety and ease of mounting.​

Key Features:

• High Voltage Capability: Withstands drain-source voltages up to 600V, suitable for high-voltage applications.​
• Moderate Current Handling: Supports continuous drain currents up to 10.2A at 25°C.​
• Low On-Resistance: Features a maximum R_DS(on) of 380mΩ at 5A, 10V, ensuring efficient operation.​
• Fast Switching Performance: Designed for rapid switching applications, enhancing efficiency.​
• Fully Isolated Package: TO-220F-3 package provides electrical isolation and improved thermal performance.​
• Robust Operating Temperature Range: Operates reliably within a junction temperature range of -55°C to +150°C.​

Additional Specifications:

• Mounting Style: Through-Hole
• Continuous Current Drain (Id): 10.2A At 25°C
• Drain-Source Breakdown Voltage (Vds): 600V
• Gate-Source Threshld Voltage (Vgs th): 2-3.5V
• Power Dissipation: 31W
• Operating Temprature: -55+150°C
