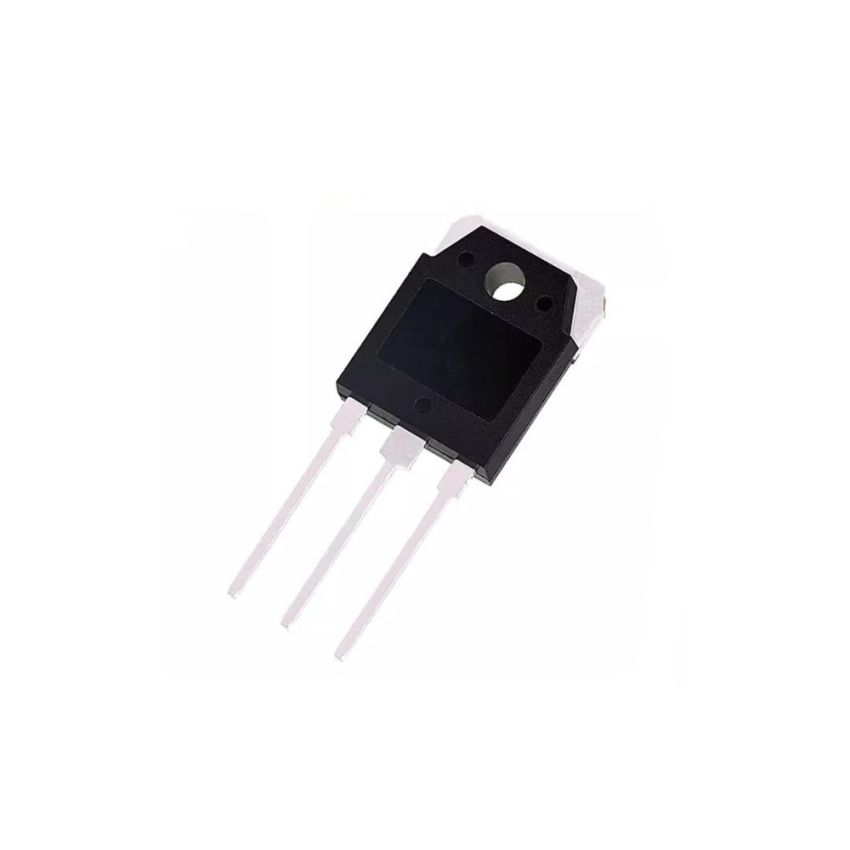

CTNS-4603S, Fast Recovery Diode, TO-3P-3L

The CTNS-4603S is a fast recovery diode designed for high-power applications requiring efficient and rapid switching capabilities. Encased in a TO-3P-3L package, it offers a peak repetitive reverse voltage of 300 V and an average forward current capacity of 60 A. The diode's low forward voltage drop and fast reverse recovery time make it suitable for use in secondary side rectification in flyback and LLC converters, as well as freewheeling diodes in offline buck and buck-boost converters. Its low thermal resistance package enhances heat dissipation, contributing to improved performance and reliability.

• High Voltage Rating: Capable of withstanding a peak repetitive reverse voltage (VRM) of 300 V.
• High Current Capacity: Supports an average forward current (IF(AV)) of 60 A.
• Low Forward Voltage Drop: Exhibits a maximum forward voltage (VF) of 1.2 V at 30 A, reducing conduction losses.
• Fast Recovery Time: Features a maximum reverse recovery time (trr) of 100 ns, enhancing efficiency in high-speed switching applications.
• Low Reverse Leakage Current: Maintains a maximum reverse leakage current (IR) of 100 µA at VRM, ensuring minimal power loss.
• Robust Thermal Performance: Operates within a junction temperature range (TJ) of -40°C to +150°C, ensuring reliability under varying thermal conditions.
