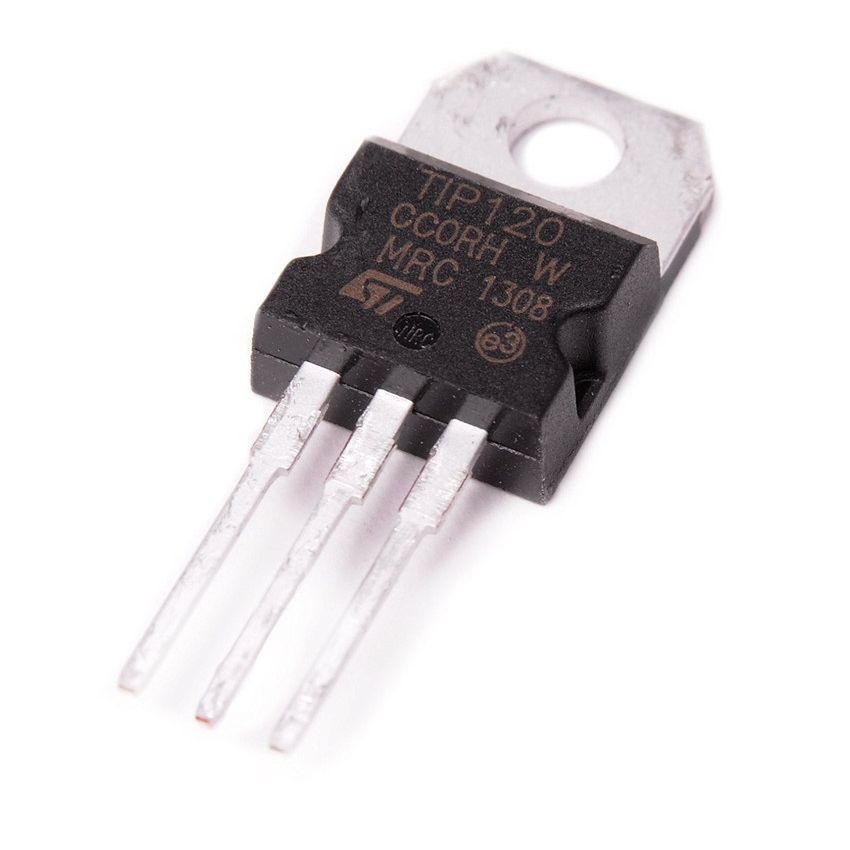

TIP120 NPN Darlington Power Transistor, TO-220 Package, 60V 5A Output Current

The TIP120 is an NPN Darlington power transistor designed for switching and amplification applications. It combines two NPN transistors in a single package to provide high current gain and low saturation voltage. Housed in a TO-220-3 package, it can handle high currents (up to 5A) and voltages (up to 60V), making it suitable for use in relays, solenoids, LED drivers, and motor controls. The integrated base-emitter resistor helps in stability and noise reduction.

Key Features:

• 60V collector-emitter voltage rating for medium power applications
• 5A continuous collector current capability for reliable load control
• High DC current gain (hFE up to 1000) through Darlington pair configuration
• TO-220 package for effective heat dissipation and easy mounting
• Integrated base-emitter resistor simplifies external circuitry
• Suitable for motor control, LED drivers, relay switching, and power regulation
