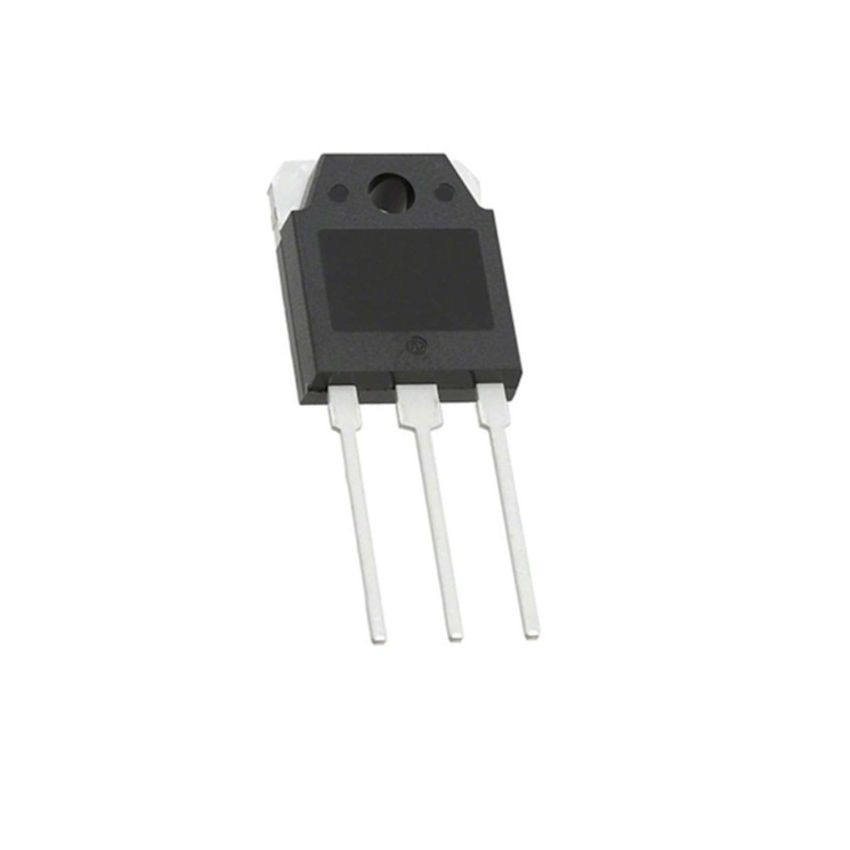

MJE13009, NPN Power Transistor, TO-3P Package

The MJE13009 is a high-voltage, high-speed NPN BJT designed for power switching in SMPS, lighting ballasts, and other high-energy applications. It offers robust electrical characteristics with excellent thermal handling thanks to its TO-3P package. Its fast switching capability and ability to operate under elevated temperatures make it an excellent choice for demanding power supply designs.

Key Features:

• High Voltage Rating: Withstands up to 400V between collector and emitter.
• High Current Capability: Handles collector currents up to 12A.
• Low Saturation Voltage: Enhances efficiency in power conversion circuits.
• Fast Switching Performance: Ideal for SMPS and inverter applications.
• Thermally Efficient Package: TO-3P form factor supports better heat dissipation.
• Rugged and Reliable: Suitable for both industrial and consumer power electronics.

Additional Specifications:

• Mounting Style: Through Hole
• Maximum DC Collector Current (Ic): 12A
• Collector-Emitter Voltage (VCEO) Max: 400V
• Collector-Base Voltage (VCBO): 700V
• Emitter-Base Voltage (VEBO): 9V
• Power Dissipation: 80W
• Operating Temprature: -65+150°C
