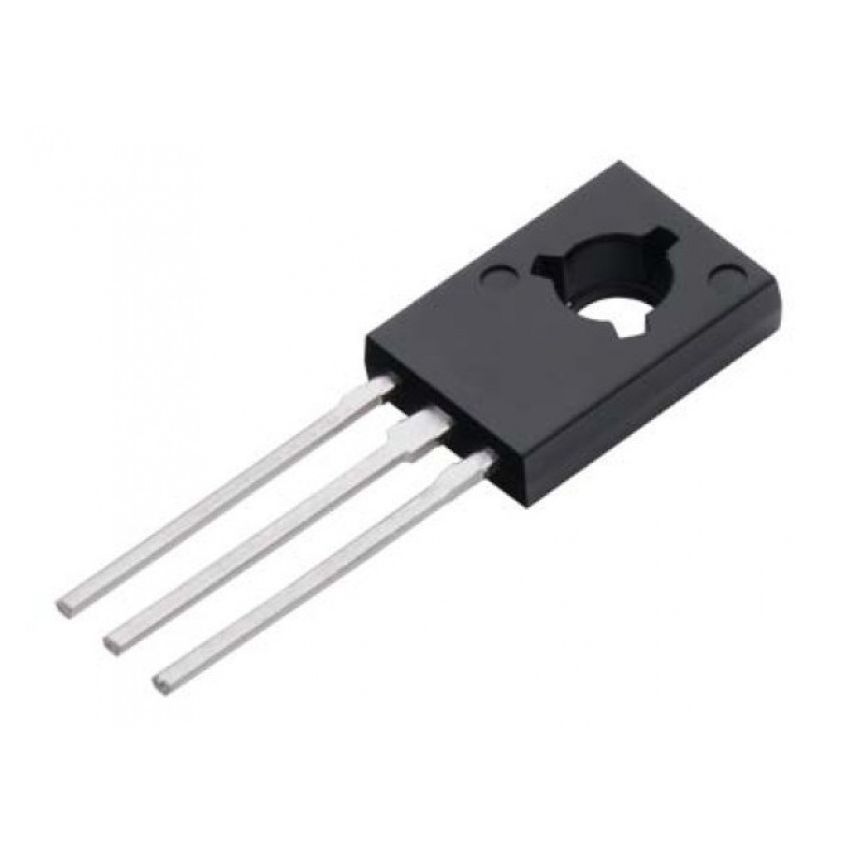

AN79N06, -6V Negative Voltage Regulator, TO-126 Package

The AN79N06 is a 3-terminal negative voltage regulator that delivers a fixed -6V output at currents up to 300mA. It integrates essential safety features such as short-circuit protection and thermal shutdown, making it ideal for reliable power delivery in audio, instrumentation, or control systems. Its TO-126 package supports better heat dissipation than TO-92 regulators, offering an optimal balance of size and thermal performance.

Key Features:

• Fixed -6V Output Voltage: Provides a stable negative supply rail without the need for external components.
• Up to 300mA Output Current: Supports moderate power requirements for analog and control circuits.
• Built-in Protections: Includes thermal shutdown and short-circuit current limiting.
• Minimal Voltage Drop: Requires only ~1.1V dropout at 200mA.
• Low Noise Operation: Suitable for sensitive analog applications with minimal output ripple.
• TO-126 Package: Offers improved thermal performance and compact size.

Additional Specifications:

• Package Type: TO-126
• Supply Voltage: -35V
• Current: 300Ma
• Type: Fixed Negative Linear Voltage Regulator
