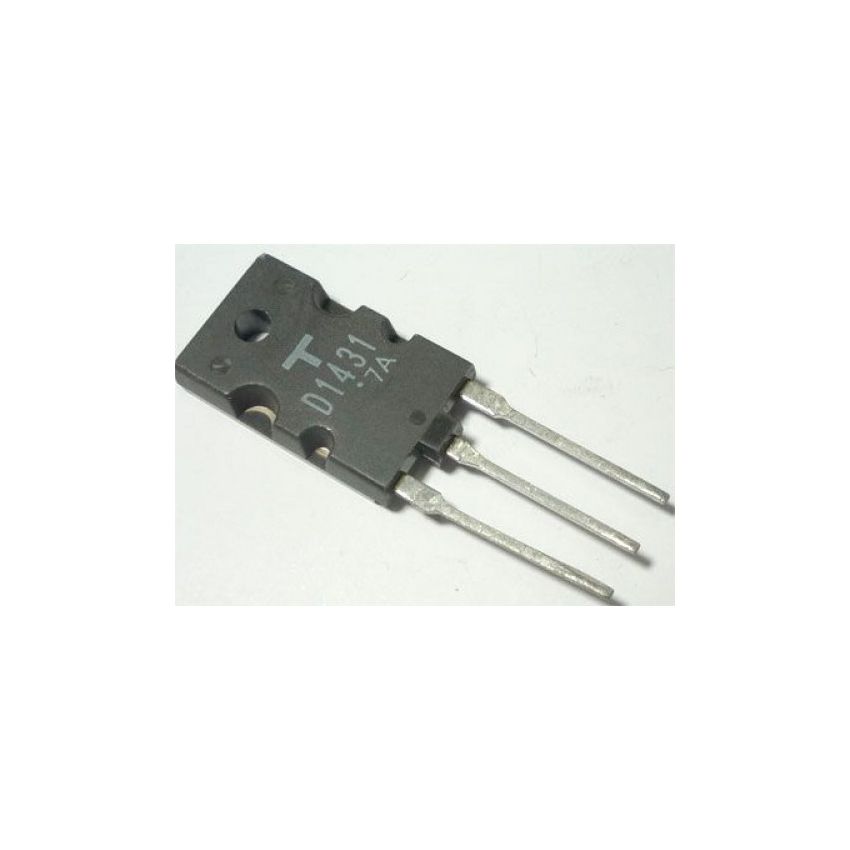

2SD1431, NPN Triple Diffused Planar Silicon Transistor, 600V VCEO, 5A Ic

The 2SD1431 is a high-performance NPN Triple Diffused Planar Silicon Transistor designed for color TV horizontal output applications without a damper diode. With a collector-emitter voltage (VCEO) of 600V and a maximum DC collector current of 5A, it offers exceptional high-speed switching performance, making it ideal for demanding applications.

The transistor features a high collector-base voltage (VCBO) of 1500V and a collector dissipation (Pc) of 50W at 25C. Its robust design ensures reliable operation in various high-voltage and high-speed switching circuits. The TO-3P package provides excellent thermal dissipation, ensuring stable performance even under challenging conditions.

Key Features :

• High Collector-Base Voltage: With a VCBO of 1500V, the 2SD1431 is suitable for high-voltage applications.
• High-Speed Switching: Optimized for color TV horizontal output circuits.
• High Collector-Emitter Voltage: Offers a VCEO of 600V for reliable performance.
• Robust Thermal Performance: 50W power dissipation capability at 25C.
• Durable Design: Operates within a junction temperature range of -50C to 150C.
• TO-3P Package: Ensures efficient thermal dissipation and easy mounting.
