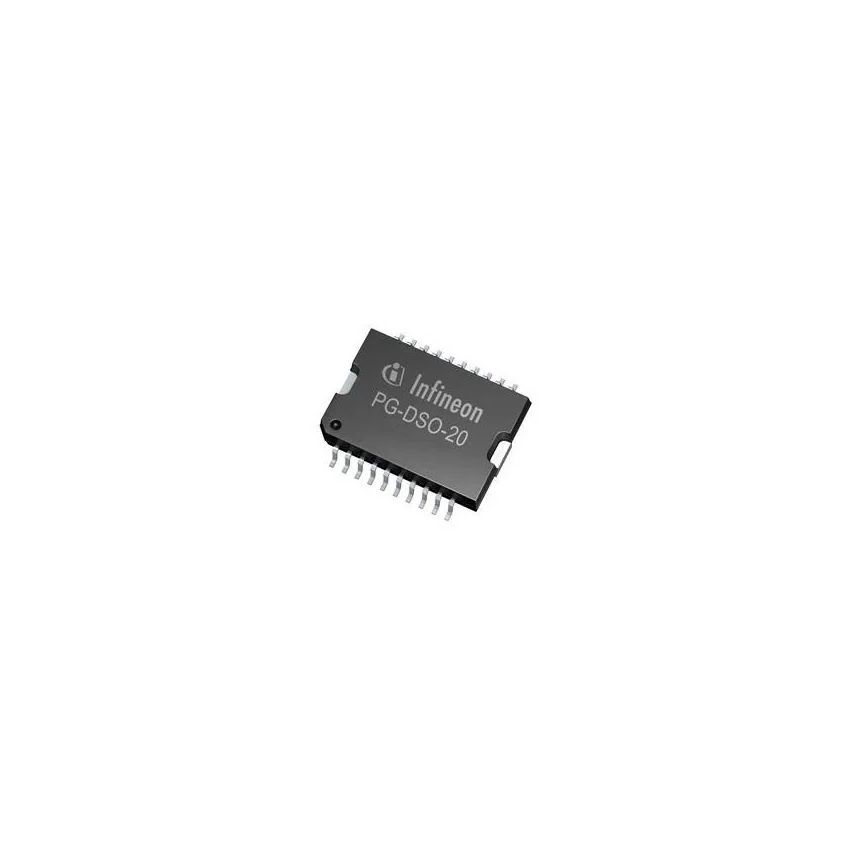

BTS716G, Smart High-Side Power Switch, PG-DSO-20

The Infineon BTS716G is a Smart High-Side Power Switch IC with four independent output channels. It combines integrated protection features with diagnostics, offering a reliable solution for high-side load switching in automotive and industrial systems. The device operates over a wide voltage range and supports inductive, capacitive, and resistive loads. Its smart switching technology improves system safety and reduces component count, making it an ideal alternative to mechanical relays and fuses.

Key Features:

• Four Independent Channels: Each channel integrates a 140 mΩ N-channel vertical power MOSFET, enabling efficient high-side switching.​
• Built-In Diagnostic Feedback: Open-load and short-circuit detection, with status feedback through open-drain outputs.
• Advanced Protection Features: Overtemperature shutdown, undervoltage detection, and reverse polarity protection ensure robust performance.
• Wide Operating Voltage Range: Works within 5.5V to 40V supply range, supporting flexible system integration.
• Capable of Driving Inductive Loads: Suitable for controlling solenoids, relays, and motors with high inrush current capability.
• Compact Surface-Mount Package: PG-DSO-20 footprint enables high power density in space-constrained designs.

Additional Specifications:

• Package Type: PG-DSO-20
• Supply Voltage: 5.5-40V
• Current: 2.6A
• Type: High Side Power Switch
