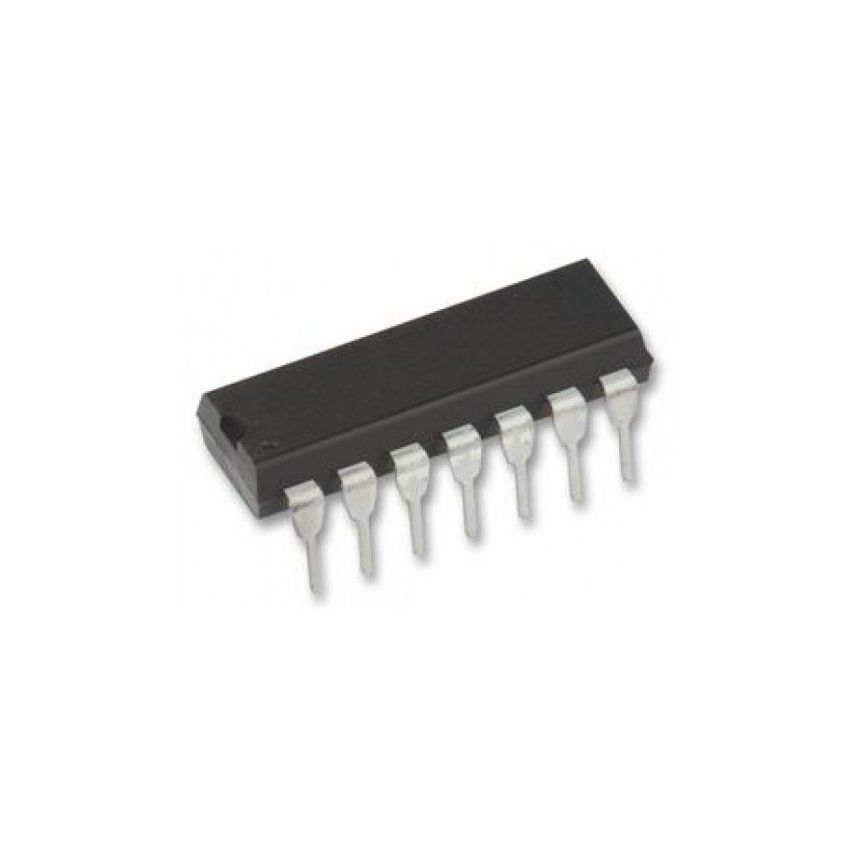

MC3403 Quad Low Power Operational Amplifier (DIP-14)

The MC3403 is a versatile quad operational amplifier designed to provide high performance in both single and dual power supply applications. Unlike the standard 324 series, the MC3403 utilizes a Class AB output stage, which significantly reduces crossover distortion and makes it better suited for high-quality audio and precision analog signal processing. Each of the four amplifiers is internally frequency compensated, ensuring stable operation across a wide range of gains. Its ability to sense signals near ground while operating from a single supply makes it an ideal choice for battery-powered instruments and automotive sensors. Housed in a standard 14-pin dual in-line package (DIP-14), it is commonly used in active filters, DC gain blocks, and traditional op-amp circuits where space efficiency and low power consumption are required.

Key Features:

Features a Class AB output stage to eliminate crossover distortion.

Wide power supply range from 3V to 36V for single supply operation.

Supports dual power supplies from plus or minus 1.5V to plus or minus 18V.

Low input biasing current typically rated at 30 nanoamps.

Input common-mode voltage range includes ground during single supply use.
