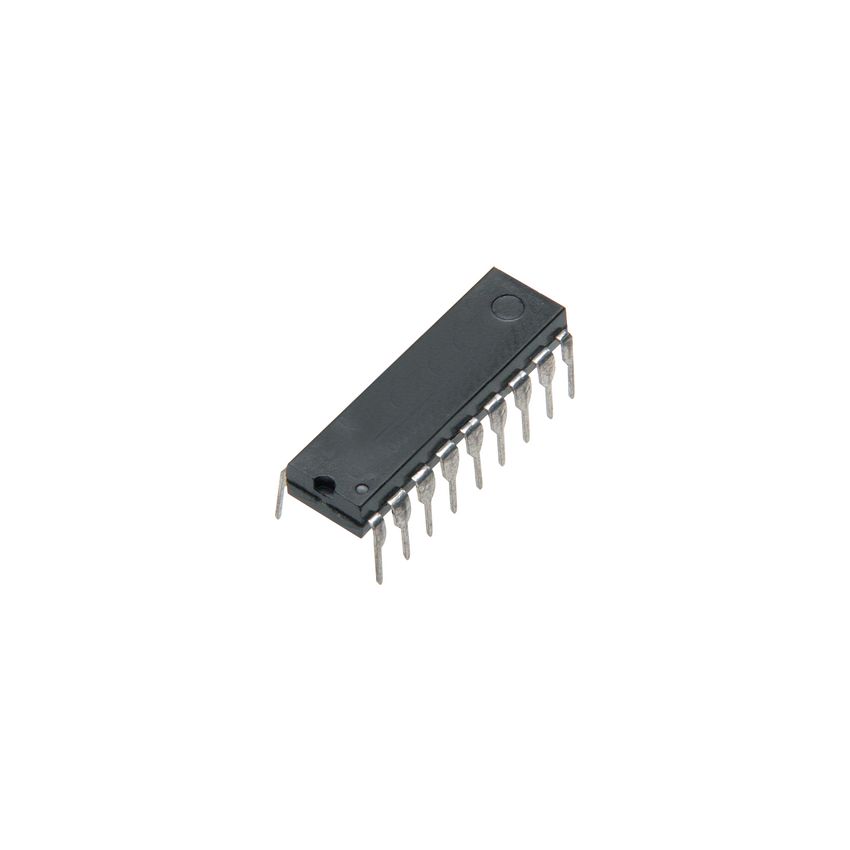

PIC16F716 8-Bit CMOS Flash Microcontroller (DIP-18)

The PIC16F716 is a versatile 8-bit microcontroller that combines high performance with low power consumption in a compact 18-pin package. It is built on an advanced RISC architecture, allowing most instructions to execute in a single cycle, which makes it ideal for time-sensitive applications. A standout feature is the Enhanced Capture, Compare, and PWM (ECCP) module, which provides sophisticated control for power conversion and motor drive circuits. The device also features an 8-bit Analog-to-Digital converter, enabling it to interface easily with various analog sensors. With its In-Circuit Serial Programming (ICSP) capability and robust environmental specifications, the PIC16F716 is a reliable choice for industrial controllers, consumer appliances, and automotive auxiliary systems.

Key Features:

Integrated 8-bit Analog-to-Digital Converter (ADC) with 4 input channels.

Enhanced Capture, Compare, and PWM (ECCP) module with half-bridge and full-bridge support.

Includes 3584 bytes of Flash program memory and 128 bytes of RAM.

Wide operating voltage range from 2.0V to 5.5V.

Three independent timers including a 16-bit Timer1 and two 8-bit timers.
