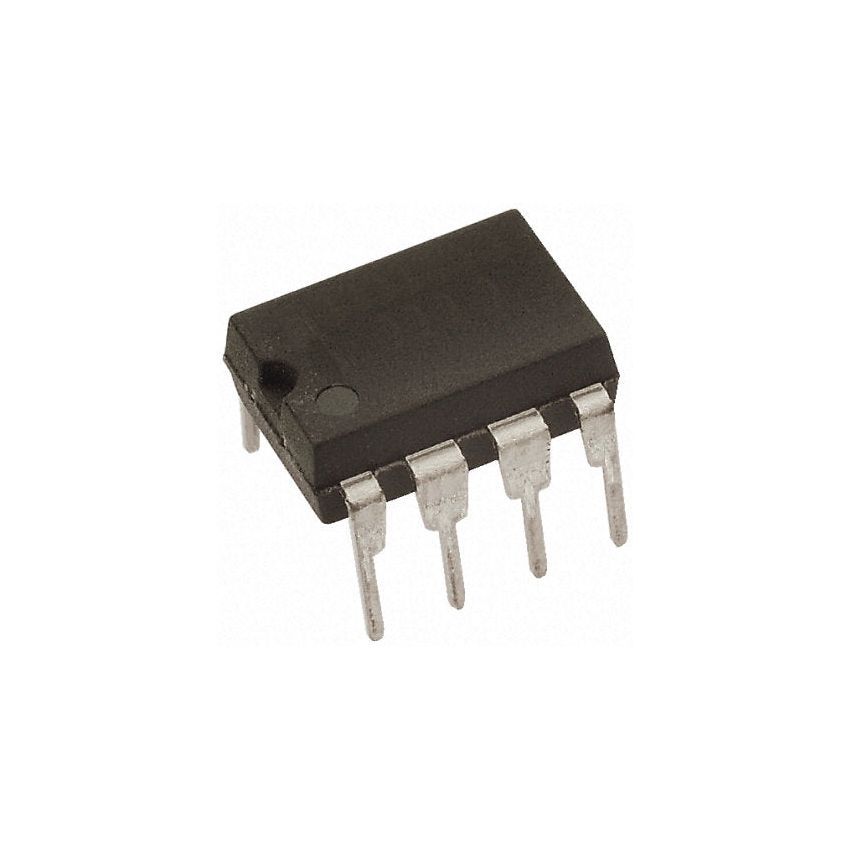

PIC12F683 8-Bit CMOS Microcontroller (DIP-8)

The PIC12F683 is a powerful and compact 8-bit microcontroller that offers a high level of intelligence in a small 8-pin package. Built on an advanced RISC architecture, it allows most instructions to execute in a single instruction cycle, providing an operating speed of up to 20 megahertz. This device is particularly well-suited for battery-powered systems due to its nanoWatt technology, which minimizes current consumption during standby and operation. Peripheral features include a 10-bit Analog-to-Digital Converter, a programmable analog comparator, and a Capture-Compare-PWM module, making it highly capable for various sensing and control tasks. With an integrated precision oscillator and reliable Power-On Reset features, the PIC12F683 reduces external component counts and is an ideal choice for consumer electronics, automotive sensors, and industrial automation.

Key Features:

Wide operating voltage range from 2.0V to 5.5V for flexible power options.

Precision internal oscillator factory calibrated to plus or minus 1 percent.

Integrated 10-bit Analog-to-Digital Converter (ADC) with 4 independent channels.

Low-power nanoWatt technology designed for high energy efficiency.

Features 2048 bytes of Flash program memory and 256 bytes of EEPROM data memory.
