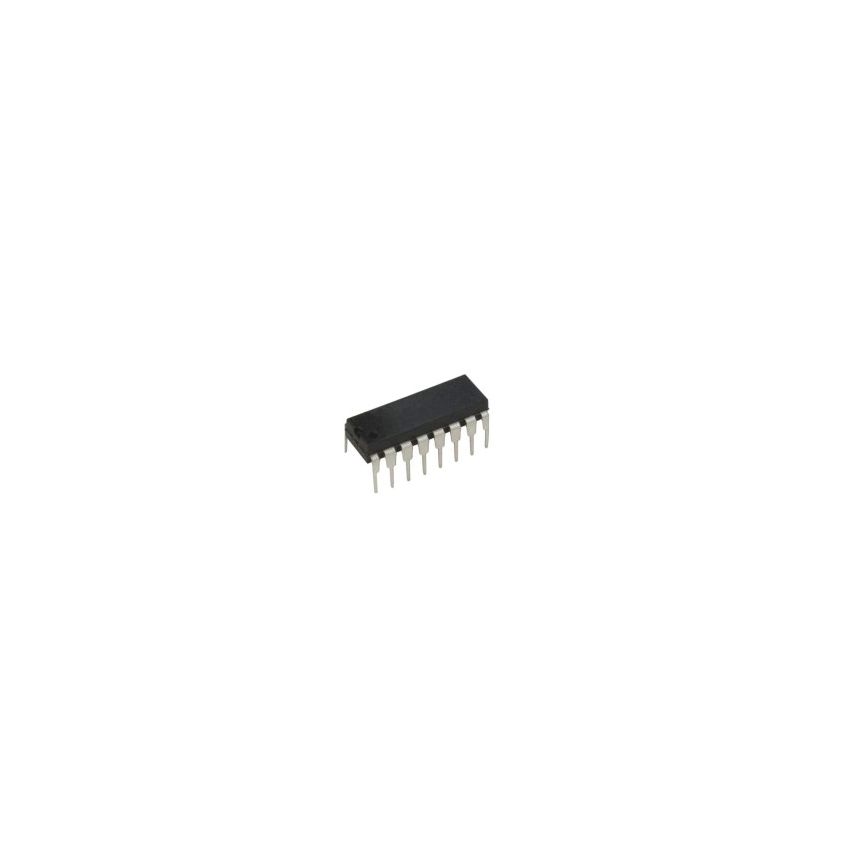

74LS133 13-Input NAND Gate IC (DIP-16)

The 74LS133 is a high-speed logic gate that performs the 13-input NAND function, where the output is low only when all thirteen inputs are high. This integrated circuit is part of the 7400-series Low Power Schottky (LS) family, which is widely recognized for balancing high-speed operation with efficient power usage. Its unique 13-input configuration makes it an essential component for complex digital systems, particularly in memory address decoding, state machines, and parity checking applications. By consolidating 13 inputs into a single gate, the 74LS133 significantly reduces the number of components required in large combinational logic circuits. It is housed in a standard 16-pin dual in-line package (DIP-16), ensuring easy integration into through-hole printed circuit board layouts and educational breadboarding projects.

Key Features:

Standard operating supply voltage of 5V (4.75V to 5.25V).

Fast switching performance with a typical propagation delay of 18 nanoseconds.

Low power consumption design with a maximum power dissipation of 100 milliwatts.

High noise immunity and stable output typical of the Low Power Schottky (LS) family.

Guaranteed operation over a wide industrial temperature range from 0 to 70 degrees Celsius.
