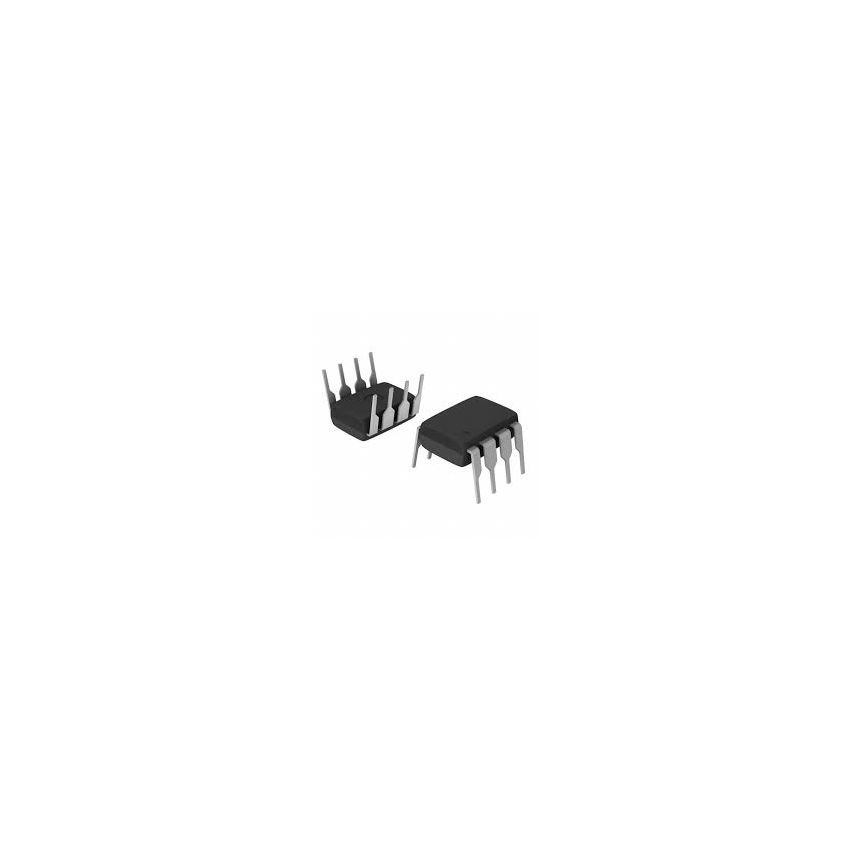

TLC3702 Dual Micropower LinCMOS Voltage Comparator

The TLC3702 is a high-performance dual voltage comparator fabricated using the advanced LinCMOS process. This device is specifically designed to operate from a single power supply while maintaining compatibility with modern HCMOS logic systems. A key advantage of the TLC3702 is its push-pull output stage, which allows it to drive capacitive loads directly and eliminates the need for the external pullup resistors required by standard open-collector comparators. By utilizing LinCMOS technology, the device offers extremely stable input offset voltages and high input impedance, which is critical for precision sensing applications. It is widely used in automotive electronics, security detection systems, and battery-powered portable instruments where low power consumption and fast response times are essential.

Key Features:

Advanced push-pull CMOS output stage drives capacitive loads without external pullup resistors.

Extremely low power consumption typically rated at 100 microwatts at 5V.

Fast response time with a typical propagation delay of 2.7 microseconds.

Wide single-supply operating voltage range from 3V to 16V.

Enhanced on-chip ESD protection for improved device reliability and robustness.
