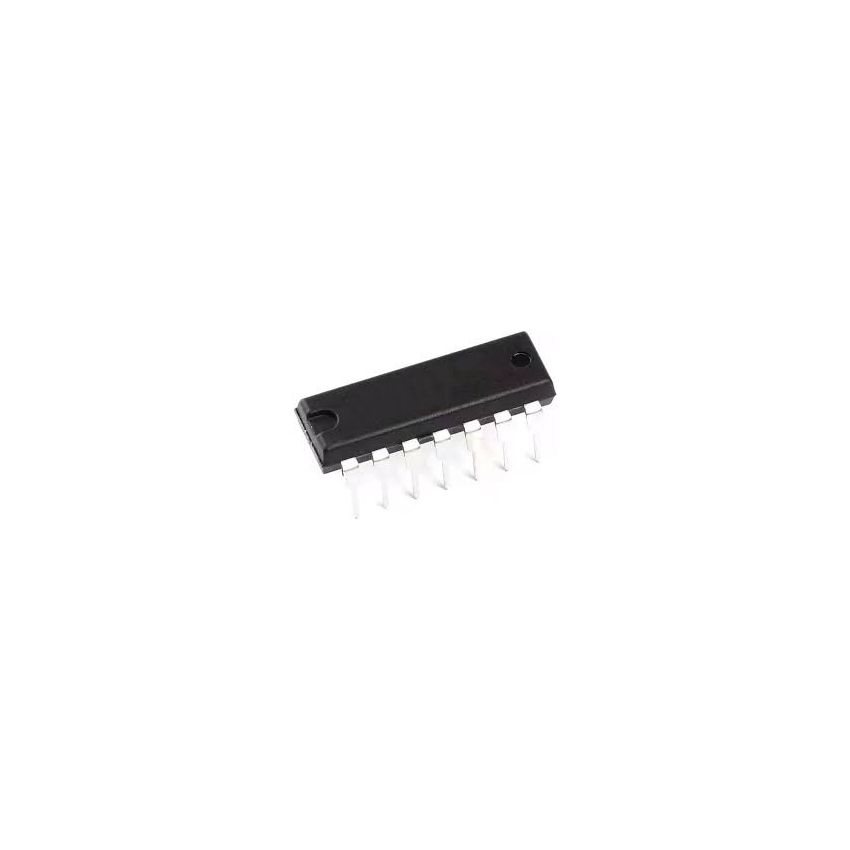

HEF4025BP Triple 3-Input NOR Gate (DIP-14)

The HEF4025BP is a high-quality integrated circuit that belongs to the HE4000B logic family. It contains three separate NOR gates, each with three inputs, making it a vital component for building complex digital logic systems. The device is manufactured using high-density CMOS technology, which allows it to function with very little power while maintaining high input impedance. Because it supports a broad voltage range (3V to 15V), it is compatible with various power supply standards found in industrial and consumer electronics. The outputs are fully buffered to protect signal integrity against electrical noise and interference. This IC is housed in a 14-pin dual in-line package (DIP-14), which is ideal for easy through-hole mounting on printed circuit boards or for use in experimental breadboard projects.

Key Features:

Fully static operation with a wide supply voltage range of 3V to 15V.

Standardized symmetrical output characteristics for balanced signal performance.

Specified for operation across the full industrial temperature range.

High noise immunity, typical of standard CMOS logic families.

Buffered inputs and outputs improve overall system noise margins.
