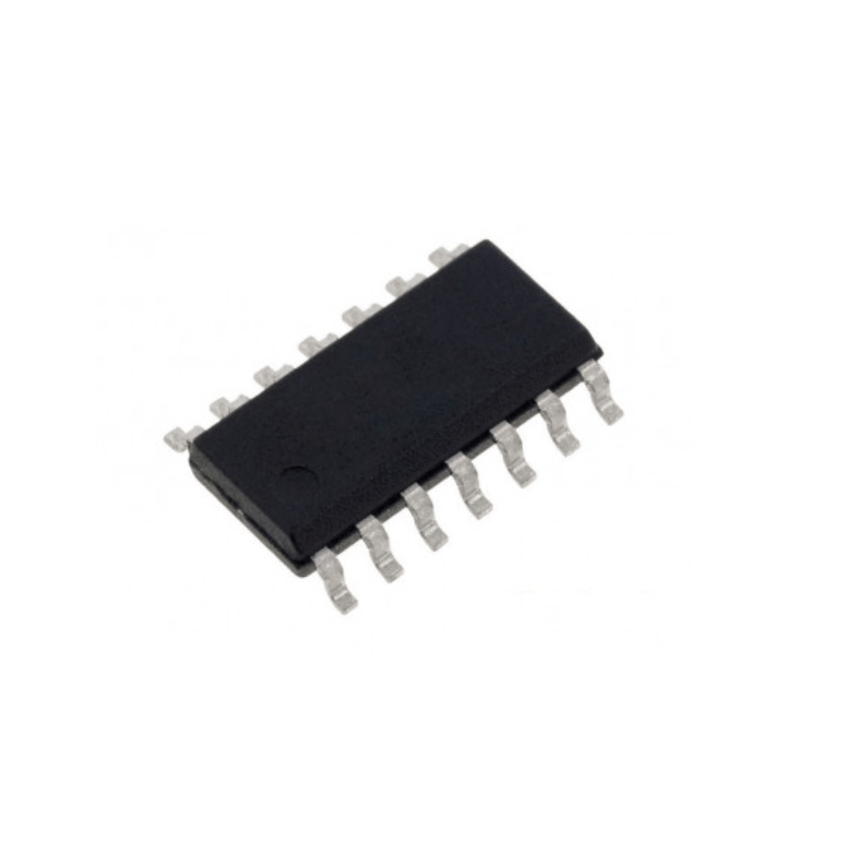

UTC324 Quadruple Operational Amplifier SMD (SOP-14)

The UTC324 is a high-performance quad operational amplifier designed specifically to operate from a single power supply over a wide range of voltages. This monolithic integrated circuit consists of four independent high-gain frequency-compensated operational amplifiers, making it an exceptionally versatile component for analog signal processing. Its unique design allows the common-mode input voltage range to include ground, enabling direct sensing near the negative rail even in single-supply configurations. The UTC324 is widely utilized in transducer amplifiers, DC gain blocks, and all conventional op-amp circuits that now can be more easily implemented in single power supply systems. Its surface-mount (SMD) SOP-14 package is ideal for compact modern electronic designs where space-saving and automated assembly are required.

Key Features:

Wide power supply range from 3V to 32V for single supply operation.

Supports dual power supplies ranging from plus or minus 1.5V to plus or minus 16V.

Large output voltage swing ranging from 0V to the positive supply voltage minus 1.5V.

Low input biasing current and low input offset voltage for improved precision.

Internal frequency compensation designed for stable performance across applications.
