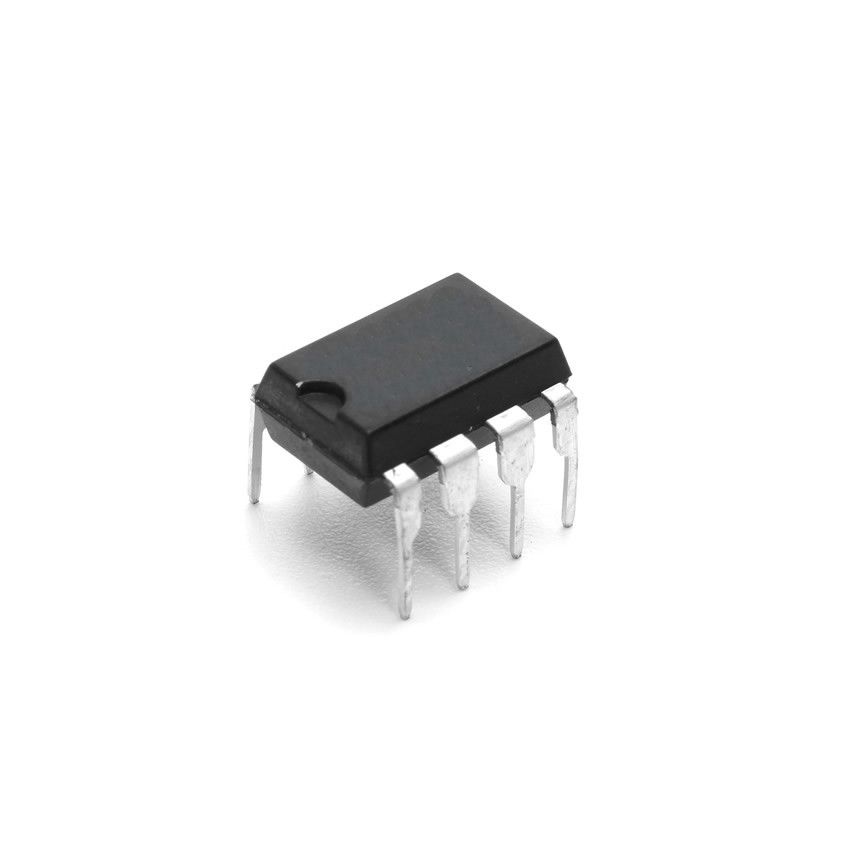

MAX3082 Fail-Safe High-Speed RS-485 and RS-422 Transceiver (DIP-8)

The MAX3082 is a high-performance, half-duplex transceiver designed for reliable RS-485 and RS-422 communication in demanding environments. It features a sophisticated fail-safe design that ensures the receiver output stays in a known logic-high state even when the input signals are open, shorted, or disconnected. By utilizing advanced slew-rate limited drivers, the MAX3082 effectively reduces electromagnetic interference (EMI) and minimizes data errors caused by cable reflections, making it ideal for use with improperly terminated lines. Its high input impedance (1/8-unit load) permits a large number of nodes on a single bus, supporting up to 256 independent transceivers. This robust IC is widely used in industrial control networks, building automation systems, and sensitive level-translation applications.

Key Features:

Features enhanced slew-rate limiting to minimize EMI and signal reflections.

Supports error-free data transmission at signaling rates up to 115kbps.

Low power consumption with a typical unloaded supply current of 375 microamps.

Includes an ultra-low 1 nanoamp shutdown mode for energy-efficient operation.

High-density bus capability allowing up to 256 transceivers on a single line.
