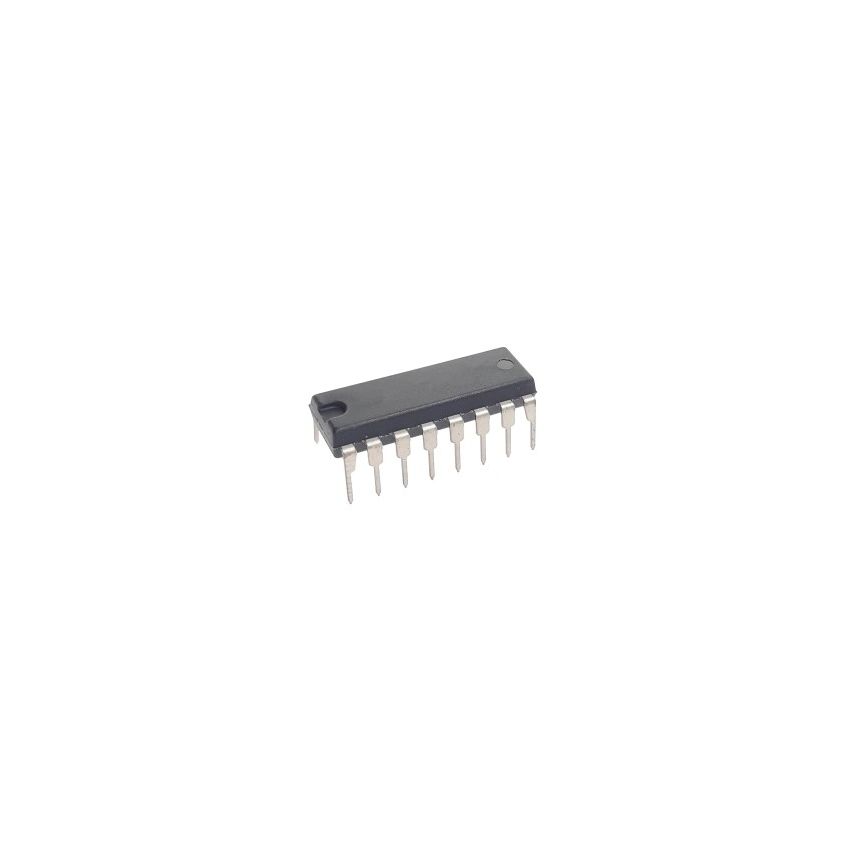

74LS137 3 to 8 Line Decoder Demultiplexer with Address Latch DIP

The 74LS137 is a specialized integrated circuit that functions as a 3 to 8 line decoder or demultiplexer featuring an internal address latch This component is designed to interpret three binary select inputs and activate one of eight unique outputs while the latches maintain the address state even when the input signals change This feature is particularly useful in microcomputer systems where address bus timing is critical The device includes three enable inputs two active low and one active high which facilitate easy expansion into larger decoders without the need for additional external logic Built with low power Schottky circuitry it offers a perfect balance of fast propagation delays and low power dissipation making it ideal for high speed memory address decoding and data distribution applications

Key Features:

Low power Schottky technology for high speed and efficiency

Three enable inputs for easy expansion and cascading

Standard 16 pin DIP package for easy circuit prototyping

Input latches allow for stable data storage during processing

Fully compatible with TTL and CMOS logic family components
