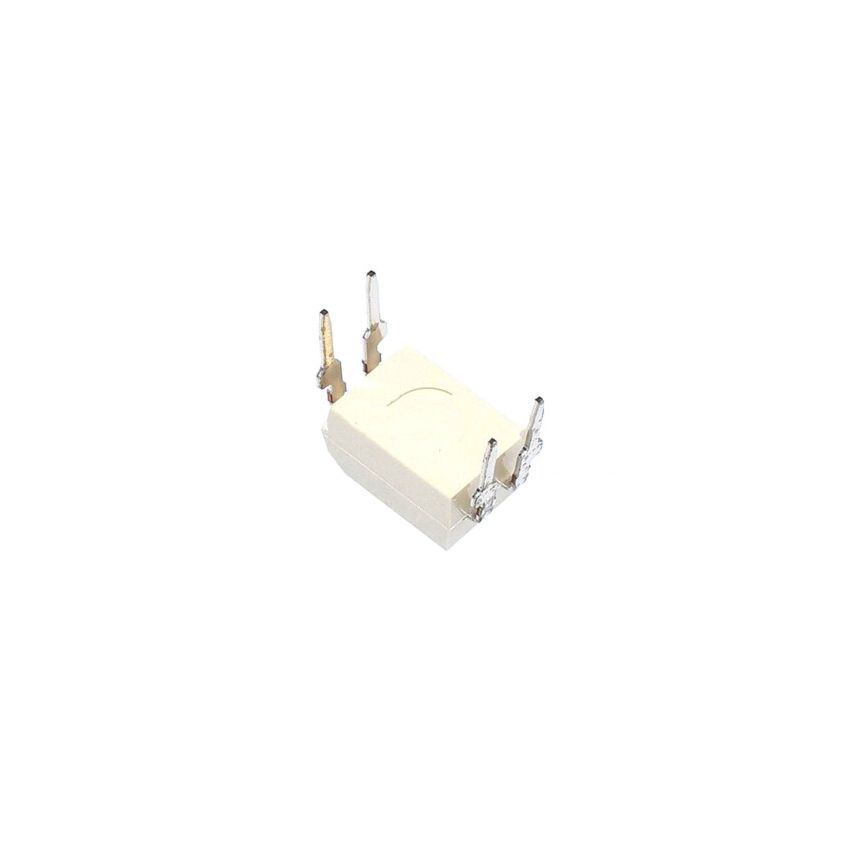

TLP620GB DIP 4 Photocoupler Optocoupler Transistor Output

The TLP620GB is a high performance photocoupler that consists of a phototransistor optically coupled to two gallium arsenide infrared emitting diodes connected in inverse parallel This unique configuration allows for AC input or polarity insensitive operation making it highly versatile for various signal monitoring tasks The device provides an impressive isolation voltage of 5000 Vrms ensuring reliable protection between input and output sections of your electronic circuits With a high current transfer ratio and a 55V collector emitter voltage rating the TLP620GB is ideal for use in programmable controllers AC DC input modules and telecommunication systems where robust signal isolation is required

Key Features:

Features current transfer ratio rank GB from 100 to 600 percent

Built with two gallium arsenide infrared emitting diodes

Supports AC or DC input with polarity insensitive design

Collector emitter voltage rating of 55V minimum

Standard DIP 4 package for easy through hole mounting
