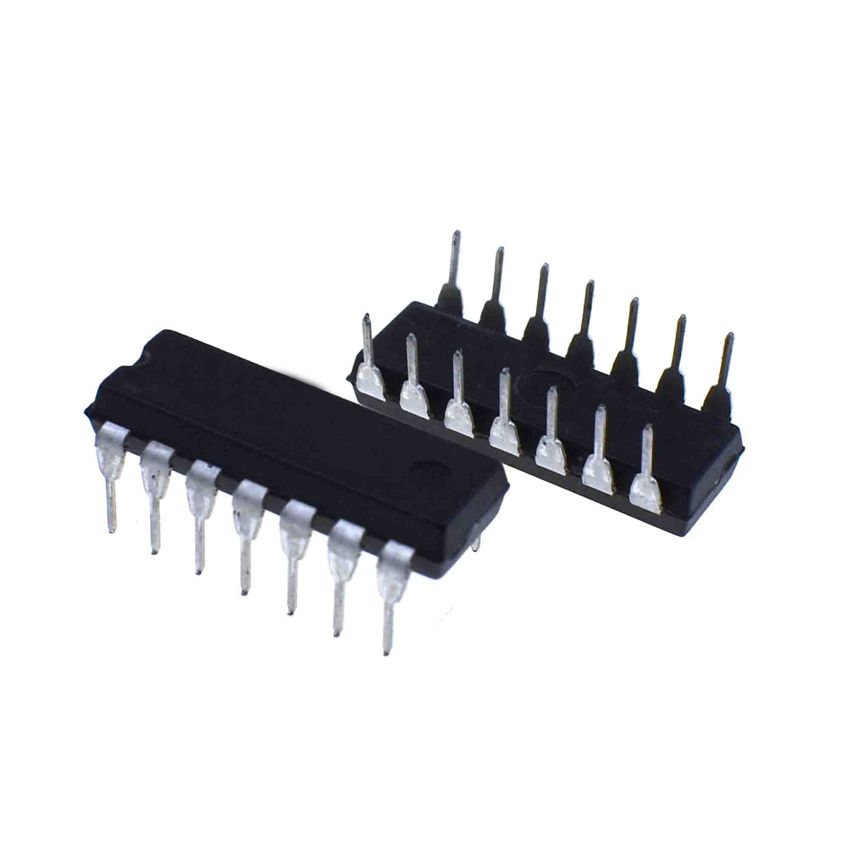

TC4584BP Hex Schmitt Trigger – High-Voltage CMOS Inverting Logic 14-Pin DIP

The TC4584BP is a high-speed CMOS hex inverter with Schmitt-trigger inputs. While a standard inverter might produce a "fluttering" or unstable output when faced with a noisy or slow-moving input signal, the TC4584BP uses hysteresis to ensure a clean, decisive transition every time. This makes it an essential component for "cleaning up" signals from mechanical switches, sensors, or long cable runs. This IC is a professional-grade solution for building simple oscillators, monostable multivibrators, and debouncing circuits. By adding a simple resistor and capacitor (RC network), a single gate can be turned into a reliable clock generator. Its wide voltage tolerance allows it to interface directly with various power rails without the need for complex level-shifting circuitry. The 14-pin DIP through-hole package is rugged and easy to handle for prototyping on breadboards or for permanent installation in industrial control PCBs. Whether you are building a custom timer, a signal conditioner for a microcontroller, or a robust power-on reset circuit, the TC4584BP provides the stable and reliable performance required for professional digital design.

Key Features:

Schmitt Trigger Action Each input features different threshold levels for positive-going and negative-going signals, effectively eliminating "jitter" from slow-moving or noisy waveforms.

Wide Supply Voltage Range Operates reliably from 3V to 18V, making it compatible with everything from low-power battery circuits to high-voltage industrial systems.

High Noise Immunity Standard 4000 series CMOS architecture offers excellent resistance to electrical interference, ideal for harsh environments.

Low Power Consumption Extremely low quiescent current, making it perfect for standby-critical or portable applications.

Pulse Squaring Capability Easily converts slow-rising analog signals (like those from a capacitor or sensor) into clean, sharp digital square waves.
