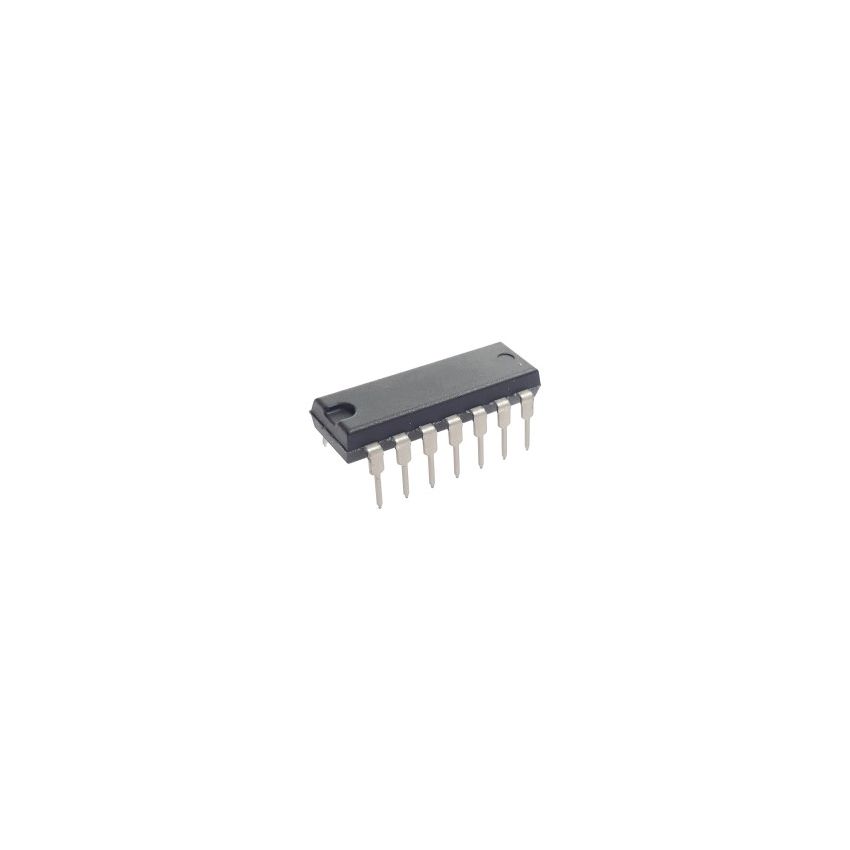

SN74LS00 Quadruple 2-Input Positive-NAND Gates – Low Power Schottky Logic 14-Pin DIP

The SN74LS00 is perhaps the most iconic and fundamental integrated circuit in the history of digital electronics. It contains four independent, 2-input NAND gates. In digital logic, the NAND gate is considered universal because any Boolean function can be implemented using only NAND gates. This makes the 74LS00 an indispensable tool for everything from simple glue logic to complex state machines. Each gate performs a specific Boolean function. The Low Power Schottky construction ensures that the device operates at high speeds while minimizing the heat and power draw on the system supply. It is designed for reliable operation across a variety of environments, featuring high noise immunity and stable output levels. Whether you are a student learning the basics of digital logic, a hobbyist building a homebrew computer, or an engineer maintaining legacy industrial equipment, the 74LS00 is a reliable, versatile, and essential component. Its 14-pin DIP format remains the professional standard for prototyping and through-hole PCB production.

Key Features:

Universal Logic Capability: Since the NAND gate is a "universal gate," this IC can be used to implement any other logic function (AND, OR, NOT, XOR).

Low Power Schottky (LS) Technology: Provides an optimal balance between high-speed switching and low power consumption, typical of the 74LS series.

Fast Propagation Delay: Typical switching times of 9 to 15 nanoseconds, making it suitable for high-speed data processing and timing applications.

Standard TTL Compatibility: Fully compatible with standard 5V logic levels, ensuring seamless integration with other 7400 series components and microcontrollers.

Robust 14-Pin DIP Package: Through-hole design ensures easy soldering, high mechanical stability, and compatibility with standard breadboards and sockets.
