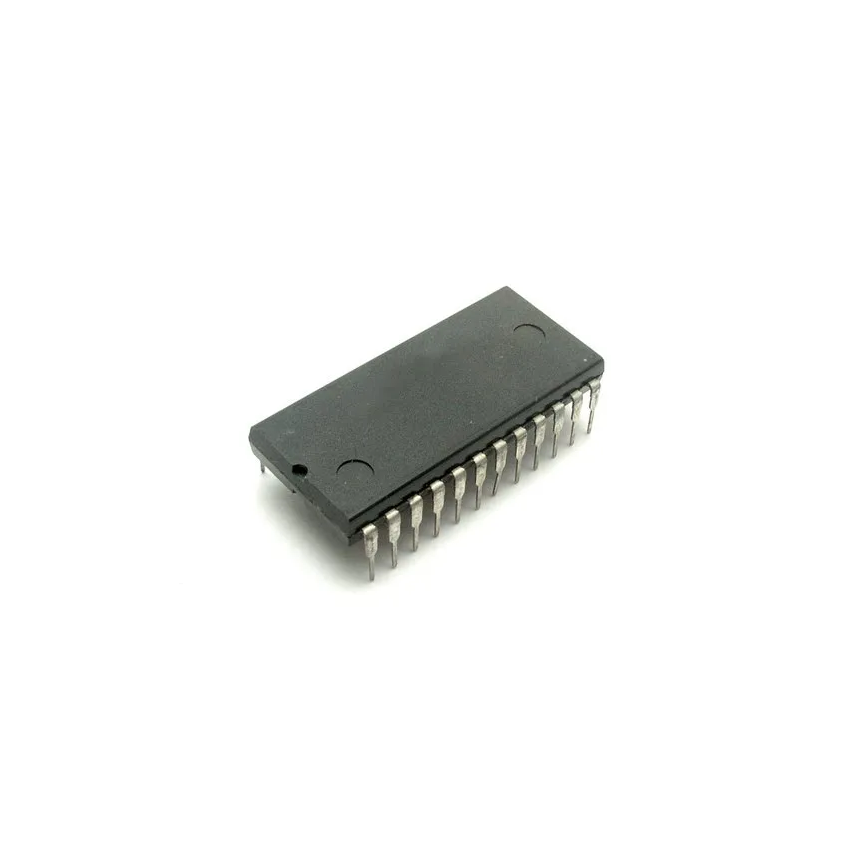

SN74LS154 4-Line to 16-Line Decoder/Demultiplexer - Low Power Schottky Logic 24-Pin DIP

The SN74LS154 is a high-performance 4-line to 16-line decoder/demultiplexer designed to simplify the selection of components in complex digital systems. By taking a 4-bit binary code (representing numbers 0 through 15), the chip automatically pulls the corresponding output pin to a logic low state while keeping all other fifteen outputs high. This makes it an essential tool for memory address decoding and data routing. When used as a demultiplexer, the 74LS154 can take data from one of the Enable (G) inputs and route it to any one of the 16 outputs based on the address provided. This versatility is vital for systems that need to distribute signals to multiple destinations without using dozens of individual logic gates. The dual enable inputs allow multiple 74LS154 units to be cascaded together to decode 32, 64, or even more lines. Whether you are designing a custom memory map for an 8-bit computer, building a large-scale LED matrix controller, or managing a bank of industrial relays, the SN74LS154 provides a professional and robust solution. Its 24-pin DIP package is a classic choice for reliability in both vintage restorations and modern digital prototyping.

Key Features:

Dual Functionality Operates as a highly efficient decoder for address routing or as a demultiplexer by using the enable inputs as data lines.

Two Active-Low Enable Inputs Features two G inputs that must both be low to activate the outputs, allowing for easy expansion or strobe control.

High-Speed Performance Utilizing Low Power Schottky technology for fast propagation delays, typically around 20 nanoseconds.

High Fan-Out Capable of driving multiple TTL loads, making it ideal for managing large memory arrays or peripheral banks.

Standard 24-Pin DIP Package Large through-hole footprint provides mechanical stability and ease of use in industrial and hobbyist projects.
