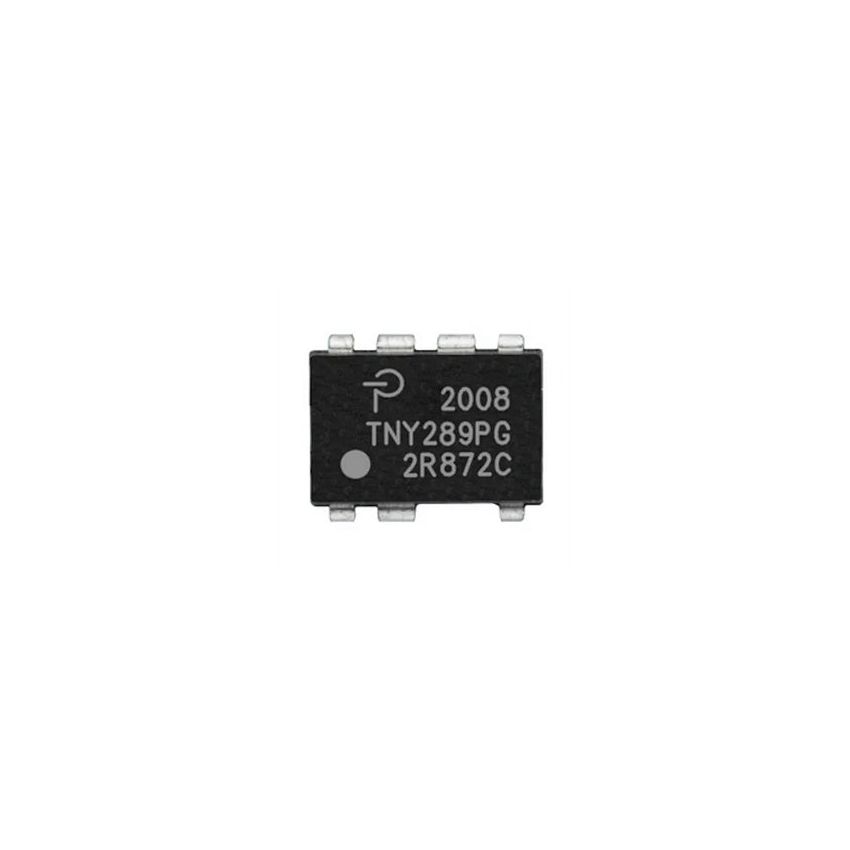

TNY289PG,Off-Line Switcher,DIP-8

The TNY289PG is a high-efficiency, off-line switcher that integrates an advanced power MOSFET and power supply controller within a compact DIP-8 package. It is designed to provide optimal performance for various power management applications, including adapters, chargers, and other low-power devices. This switcher features line-compensated overload power, ensuring stability over a wide range of input voltages, along with enhanced safety mechanisms such as thermal shutdown with automatic recovery.

The TNY289PG offers selectable current limit modes, allowing flexibility in power delivery based on specific design requirements. With its built-in frequency jittering, this device reduces EMI filter costs, providing a cost-effective solution for efficient power management. The compact design simplifies integration and helps minimize overall system size, making it a preferred choice for modern electronic devices.

Manufactured with Power Integrations' reliable technology, the TNY289PG ensures consistent, energy-efficient performance, even under varying load conditions. Its ability to deliver low no-load power consumption makes it an excellent choice for standby applications. The device can be configured for different current limits using a bypass pin capacitor, providing a versatile solution suitable for a wide range of applications.

• High-Efficiency Power Management: Designed to meet global energy efficiency regulations with low standby power.
• Advanced Safety Mechanisms: Includes thermal shutdown protection with automatic recovery to ensure device safety.
• Flexible Current Limit Options: Offers standard, reduced, and increased current limit settings for varied application needs.
• Compact DIP-8 Package: Simplified design integration with a standard DIP-8 form factor.
• Line Compensated Overload Power: Improved performance over a wide range of input voltages.
• Applications: Ideal for adapters, chargers, and low-power devices requiring efficient power switching.
