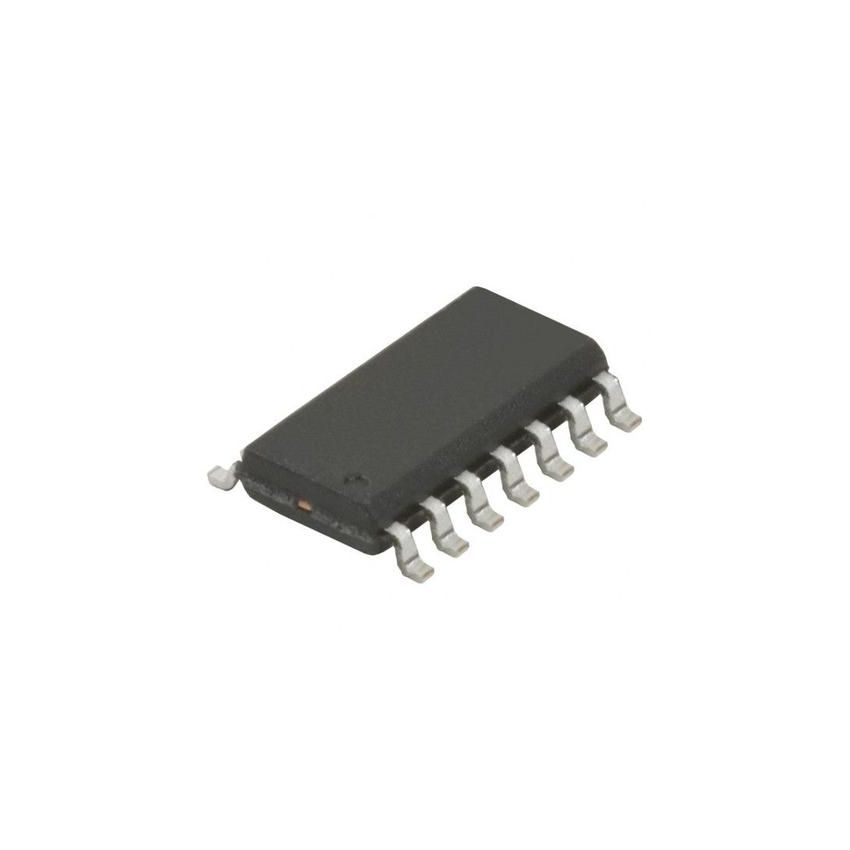

74HC243D, Quadruple Bus Transceiver, SOP-14 Package

The 74HC243D is a quadruple bus transceiver designed for asynchronous two-way communication between data buses. It features 3-state outputs, allowing multiple devices to share the same data bus without interference. As part of the HC logic family, it offers high-speed operation with low power consumption, making it suitable for various digital applications.

• Bidirectional Data Transmission – Facilitates two-way communication between data buses.
• 3-State Outputs – Allows multiple devices to share the same data bus without interference.
• High-Speed Operation – Part of the HC logic family, offering fast propagation delays.
• Low Power Consumption – Designed for efficient operation with minimal power usage.
• Standard SOP-14 Package – Encased in a 14-pin Small Outline Package for compact PCB designs.
• TTL-Compatible Inputs – Ensures compatibility with standard TTL logic levels.
