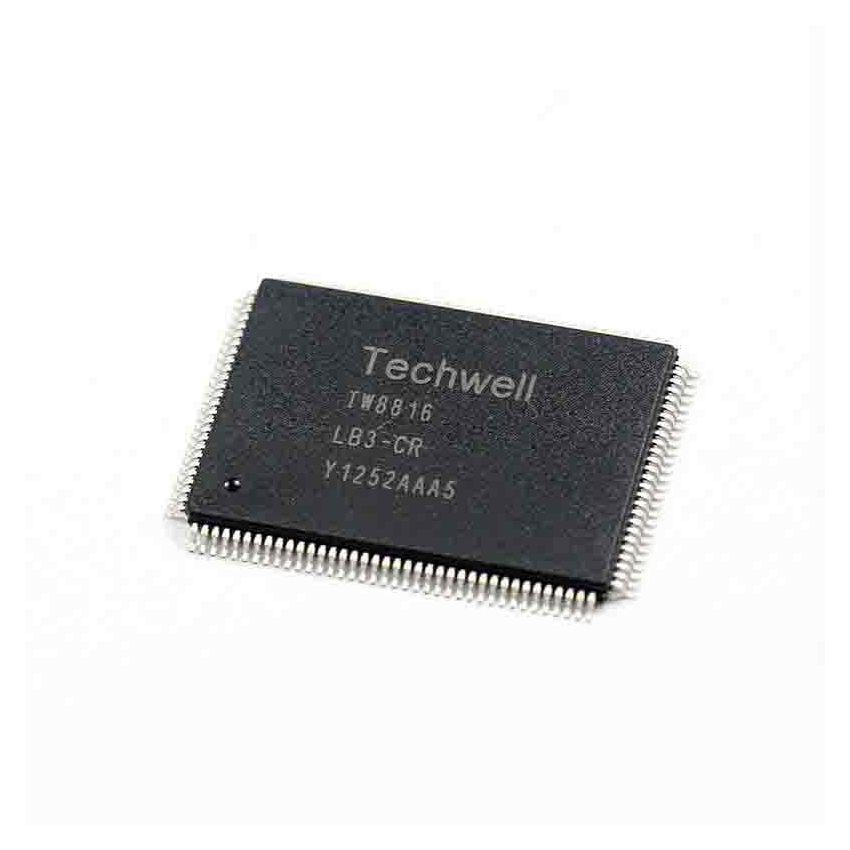

TW8816, LCD Display Processor IC, QFP

The TW8816 is a high-performance LCD display processor IC, designed for multimedia, automotive, and consumer electronics applications. It integrates video signal decoding, image enhancement, and on-screen display (OSD) features, offering a complete solution for LCD panel control.

The IC supports multiple video inputs including CVBS, S-Video, YPbPr, and RGB, ensuring seamless compatibility with a wide range of sources. It features high-precision deinterlacing, scaling, and contrast adjustments, delivering enhanced image clarity for automotive displays, portable media players, and digital signage.

The built-in 8051 microcontroller (MCU) with SPI interface allows flexible customization and real-time system adjustments, reducing the need for external processing units. The on-chip OSD engine supports multi-color font rendering and customizable overlays, enabling user-friendly display interfaces.

With support for WXGA TFT panels (1280x768 resolution) and low power consumption, the TW8816 is ideal for space-constrained, energy-efficient display solutions. Packaged in a QFP format, it is designed for surface-mount applications, ensuring compact PCB integration.

• Multi-Format Video Input Support: Supports CVBS, S-Video, RGB, YPbPr, and digital interfaces (8/16/24-bit RGB/YCbCr) for versatile display applications.
• Advanced Display Processing: Integrates video decoding, scaling, deinterlacing, and gamma correction, ensuring high-quality image rendering.
• On-Chip 8051 MCU with SPI Interface: Includes an integrated 8-bit microcontroller, enabling flexible system control and customization.
• Built-In On-Screen Display (OSD) Processor: Features programmable font support, multi-window overlay, and alpha blending, enhancing user interface customization.
• Panel Support up to WXGA (1280x768): Compatible with single-pixel TFT panels and analog active-matrix TFT panels, ensuring broad compatibility.
• Low Power Consumption & Compact QFP Package: Optimized for battery-powered and compact devices, with a surface-mount QFP package for high-density PCB integration.
