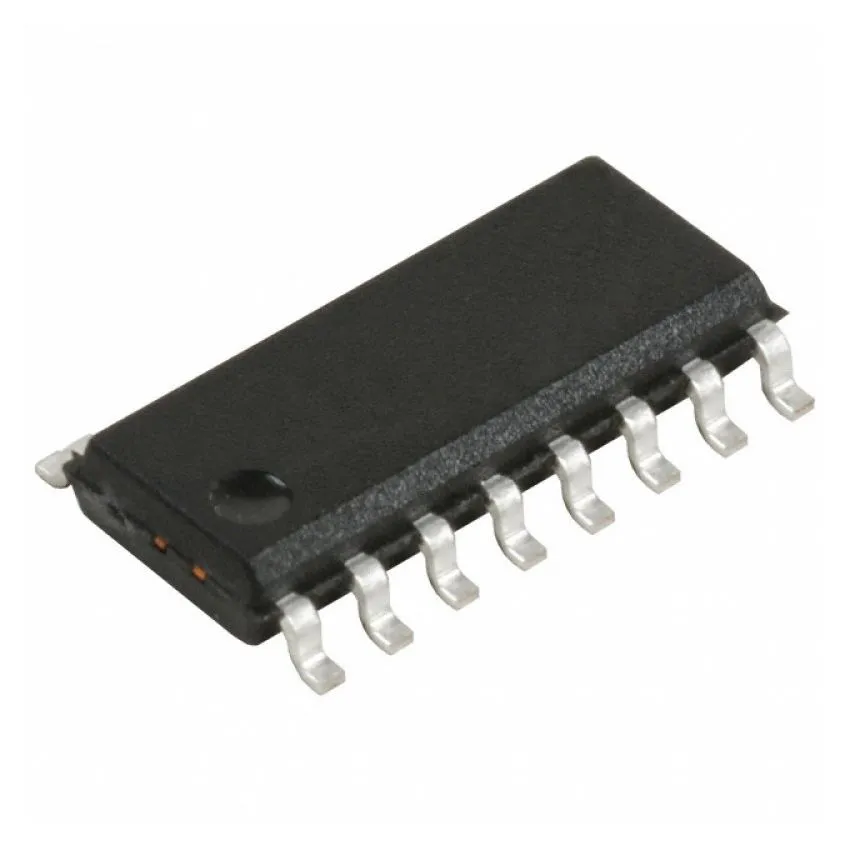

74HC423 ,Dual Retriggerable Monostable Multivibrator – SOP-16, 2V-6V Operating Voltage

The 74HC423 is a high-speed CMOS dual retriggerable monostable multivibrator with reset, designed for applications requiring pulse width control. The circuit features two independent monostable multivibrators, each with a retriggering capability that allows the pulse width to be extended by subsequent triggers. The output pulse width is determined by an external resistor (R_EXT) and capacitor (C_EXT). With a wide operating voltage range of 2.0V to 6.0V, the 74HC423 offers low power dissipation, high noise immunity, and Schmitt-trigger action on all inputs (except the reset input). It is commonly used in pulse generation, delay circuits, frequency timers, and waveform shaping applications. The 74HC423 provides direct reset functionality, allowing the output to be terminated at any time. It is packaged in a SOP-16 surface-mount package, making it suitable for high-density circuit designs.

Key Features:

• Dual Monostable Multivibrator – Two retriggerable pulse generators with independent reset functionality.
• Variable Pulse Width Control – Output pulse width determined by an external resistor-capacitor (R_EXT, C_EXT) network.
• Wide Operating Voltage Range – Operates from 2.0V to 6.0V, supporting compatibility with logic circuits.
• Low Power Consumption – CMOS technology ensures minimal power dissipation with high efficiency.
• High Noise Immunity – Schmitt-trigger action on inputs improves noise margin and stability.
• Surface-Mount Package – Available in SOP-16, suitable for compact circuit designs and automated assembly.

Additional Specifications:

• Package Type: SOP-16
• Product Type: Dual Retriggerable Monostable Multivibrator With Reset
• Input Low Voltage: 0-1.8V
• Input High Voltage: 1.5-4.2V
• Propagation Delay Time: 55-385 ns
• Logic Gate Type: Monostable Multivibrator
• Supply Voltage: 2-6V
