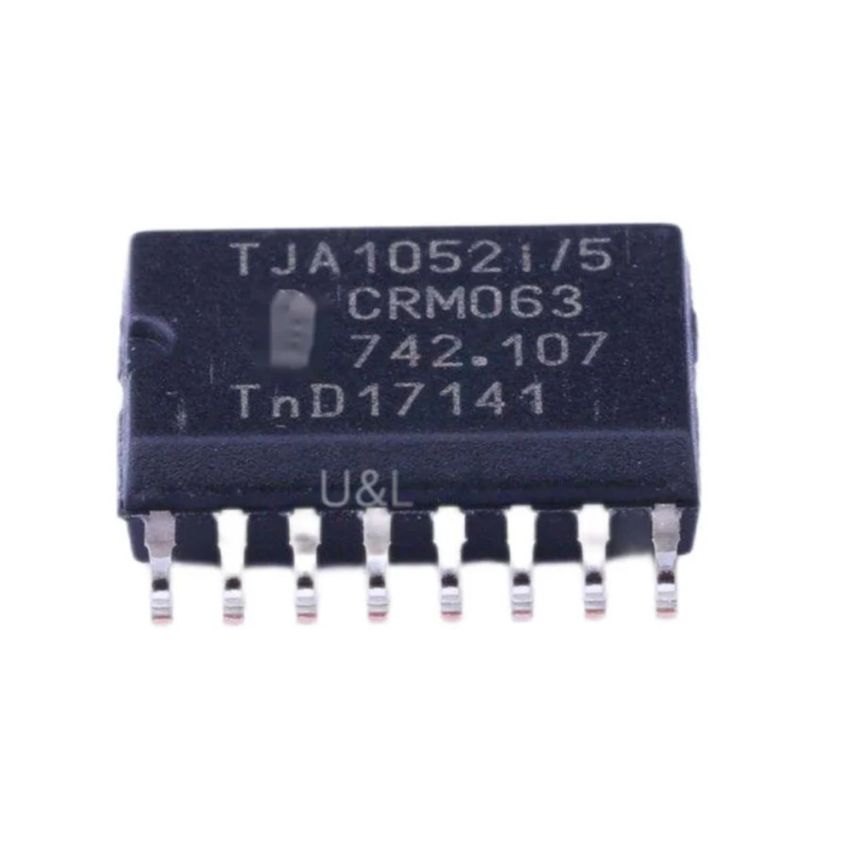

TJA1052I/5, Galvanically Isolated High-Speed CAN Transceiver, SOIC-16 Package

The TJA1052I/5 is a high-speed CAN transceiver that provides a galvanically isolated interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. It is specifically designed for applications requiring isolation for safety and signal integrity, such as in electric vehicles (EVs) and hybrid electric vehicles (HEVs). The device supports data rates up to 5 Mbps, making it suitable for CAN FD applications. Its integrated isolator and transceiver reduce the need for external components, enhancing system reliability and performance. The TJA1052I/5 also features improved EMC and ESD performance, ensuring robust operation in demanding environments.

• Galvanic Isolation – Provides a galvanically isolated interface between the CAN protocol controller and the physical two-wire CAN bus, enhancing safety and signal integrity.
• High-Speed CAN Communication – Supports data rates up to 5 Mbps, compliant with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standards.
• Enhanced EMC and ESD Performance – Offers improved ElectroMagnetic Compatibility (EMC) and robust ElectroStatic Discharge (ESD) protection, ensuring reliable operation in demanding environments.
• Low Power Consumption – Features a low-current Standby mode with bus wake-up capability, reducing power consumption during periods of inactivity.
• Wide Operating Temperature Range – Operates reliably in temperatures ranging from -40°C to +125°C, making it suitable for automotive and industrial applications.
• Integrated Isolator and Transceiver – Combines isolator and transceiver functionalities into a single package, reducing board space and component count.
