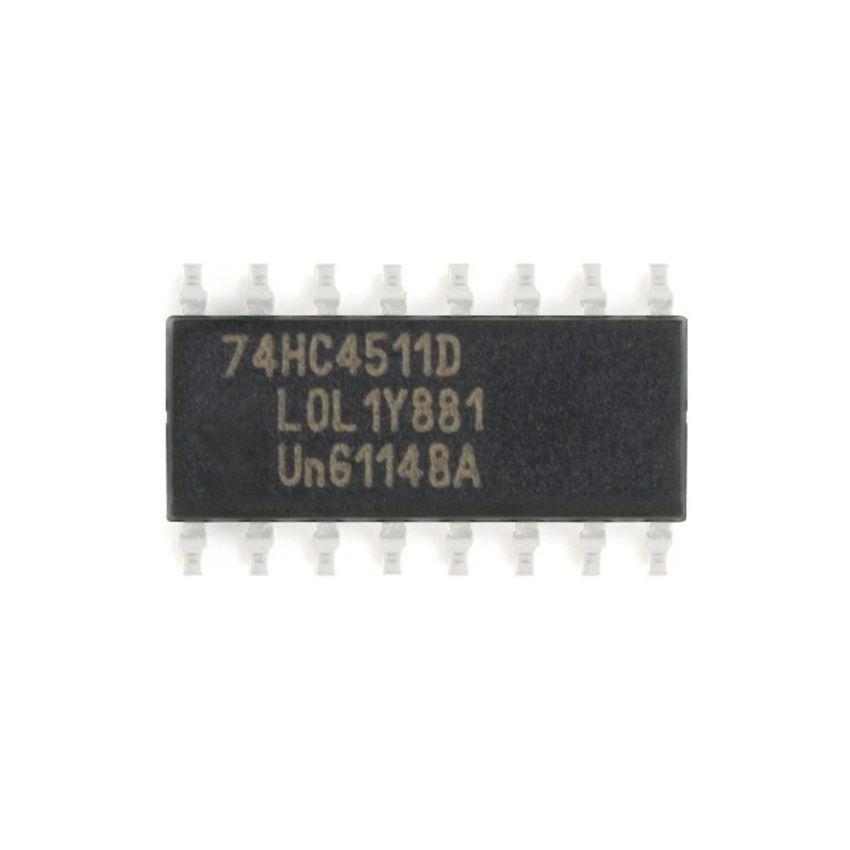

74HC4511D, BCD-to-7 Segment Latch,Decoder,Driver, SOIC-16

The 74HC4511D is a high-speed CMOS BCD-to-7 segment latch/decoder/driver, optimized for digital display applications. It decodes four-bit binary-coded decimal (BCD) input into seven-segment output signals, making it ideal for numerical display systems such as digital meters, clocks, and counters. With a wide voltage range of 2V to 6V, the 74HC4511D is compatible with a variety of digital logic families. The built-in latch function enables data storage, allowing the display to remain stable even if the input changes. The Lamp Test (LT) and Blanking Input (BI) provide additional functionality for testing and display control. Designed for driving common-cathode LED displays, the 74HC4511D offers high drive capability, ensuring clear and stable numerical readouts. Its SOIC-16 surface-mount package makes it ideal for compact PCB layouts in modern electronic designs.

• BCD-to-7 Segment Latch/Decoder/Driver – Converts binary-coded decimal (BCD) inputs into 7-segment display outputs​
• Latch Functionality – Allows data storage, ensuring stable display output without continuous updates.
• Wide Voltage Range – Operates between 2V and 6V, making it compatible with various logic systems.
• Lamp Test and Blanking Features – Includes LT (Lamp Test) to verify segment functionality and BI (Blanking Input) to turn off the display when needed.
• High Output Drive Capability – Designed to drive common-cathode LED displays directly.
• SOIC-16 Package for Compact Designs – Surface-mount package ensures efficient PCB space utilization.
