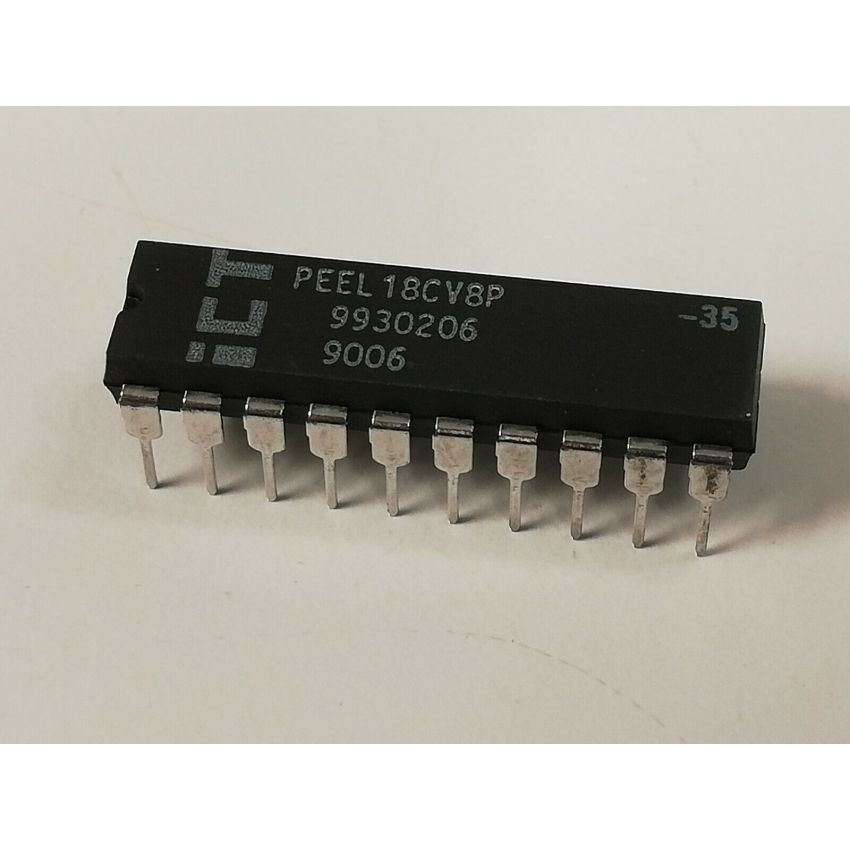

PEEL18CV8P, Programmable Electrically Erasable Logic Device , DIP-20

The PEEL18CV8P is a Programmable Electrically Erasable Logic (PEEL) device, designed to replace traditional PAL, GAL, and EPLD devices. Featuring a programmable AND array with a fixed OR array, this IC allows designers to implement complex logic functions while reducing overall component count.

The high-speed operation (as low as 10ns propagation delay) ensures fast response times, making it suitable for applications requiring real-time logic execution. With low-power CMOS technology, the PEEL18CV8P provides efficient operation, making it ideal for battery-powered and embedded systems.

The macrocell architecture supports both combinational and sequential logic configurations, giving developers flexibility in circuit design. Its in-system programmability (ISP) allows reconfiguration without external UV erasers, significantly reducing development time.

Packaged in a DIP-20 form factor, the PEEL18CV8P is optimized for through-hole PCB mounting, making it ideal for both prototyping and production environments.

• Programmable Electrically Erasable Logic (PEEL) Device: Offers custom logic configuration with electrically erasable technology.
• High-Speed Operation: Provides propagation delay as low as 10ns, ensuring fast logic execution.
• Low Power Consumption: Supports CMOS technology, allowing for efficient power usage while maintaining high performance.
• In-System Programmable (ISP): Enables easy reprogramming, eliminating the need for external UV erasers.
• Versatile Macrocell Architecture: Supports combinational and sequential logic, making it a flexible alternative to standard PAL/GAL devices.
• DIP-20 Package for Easy Integration: Through-hole mounting for stable PCB assembly and rapid prototyping.
