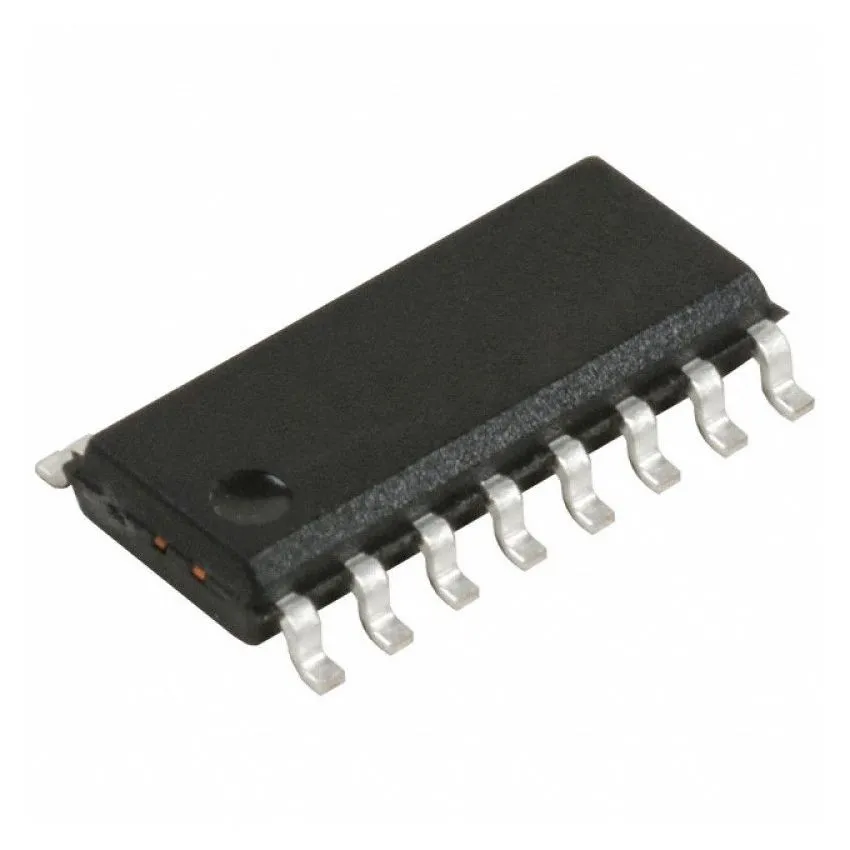

74HC221 ,Dual Monostable Multivibrator , SOP-16, 2V-6V

The 74HC221 is a high-speed CMOS dual monostable multivibrator with Schmitt trigger inputs. It is designed to generate accurate, retriggerable pulse outputs based on external resistors and capacitors. The device operates over a wide voltage range of 2V to 6V, making it suitable for timing, pulse generation, and delay circuit applications. Each monostable section of the 74HC221 can be independently triggered by positive or negative transitions. The pulse duration is controlled via an external resistor and capacitor and can be extended via retriggering. The device is capable of high-noise immunity, ensuring stable operation in harsh environments. Encased in a SOP-16 surface-mount package, the 74HC221 is ideal for applications requiring precise timing control, frequency pulse shaping, and delay circuits.

Key Features:

• Dual Monostable Multivibrator: Provides two independent pulse generators.
• Retriggerable Pulse Output: Extends pulse duration as needed.
• Adjustable Pulse Width: Controlled via external resistor and capacitor.
• Wide Voltage Range: Operates from 2V to 6V.
• Fast Propagation Delay: Ensures accurate pulse generation.
• SOP-16 Surface Mount Package: Compact and optimized for PCB designs.

Additional Specifications:

• Package Type: SOP-16
• Product Type: Dual Monostable Multivibrator
• Input Low Voltage: 0.5V@2V,1.35V@6V
• Input High Voltage: 1.5V@2V,4.2@6V
• Propagation Delay Time: 80ns@5V
• Logic Gate Type: Retriggerable Monostable Multivibrator
• Supply Voltage: 2-6V
