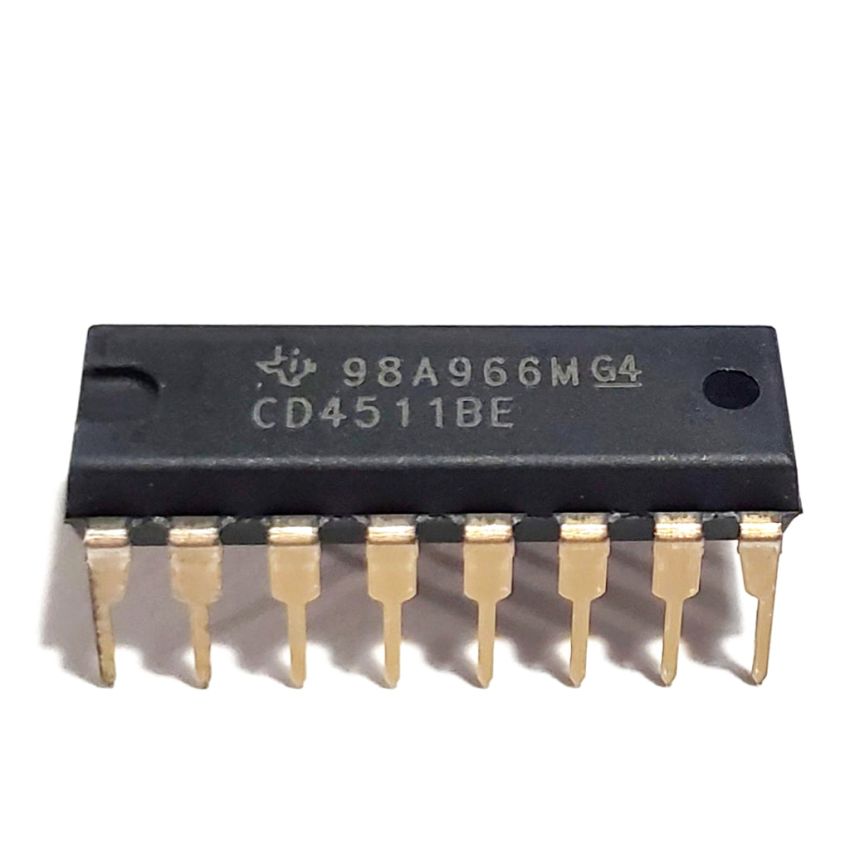

CD4511BE,BCD-to-7 Segment Latch,Decoder,Driver, DIP-16

The CD4511BE is a BCD-to-7 segment latch/decoder/driver IC, designed to drive common-cathode 7-segment displays in a variety of digital applications. It accepts binary-coded decimal (BCD) inputs and decodes them into the corresponding 7-segment display patterns. With a wide voltage range of 3V to 18V, the CD4511BE supports a variety of logic families, ensuring compatibility with low-power and standard CMOS systems. Its latch function allows for data retention, holding the display value without the need for continuous data updates. The IC features high output drive capability, enabling direct interfacing with common-cathode LED displays. Packaged in a DIP-16 format, it is ideal for applications such as digital clocks, frequency counters, and numerical displays in embedded systems.

• BCD-to-7 Segment Decoder/Driver – Converts binary-coded decimal inputs into 7-segment display outputs.
• Wide Voltage Range – Operates efficiently between 3V and 18V, making it compatible with various logic systems​
• Built-in Latch Functionality – Provides data storage capabilities to maintain display states without continuous input.
• Low Power Consumption – CMOS technology ensures minimal power usage, suitable for battery-powered applications.
• High Output Drive Capability – Can directly drive common-cathode 7-segment displays.
• DIP-16 Package for Easy Integration – Standard dual-in-line package simplifies PCB mounting and prototyping.
