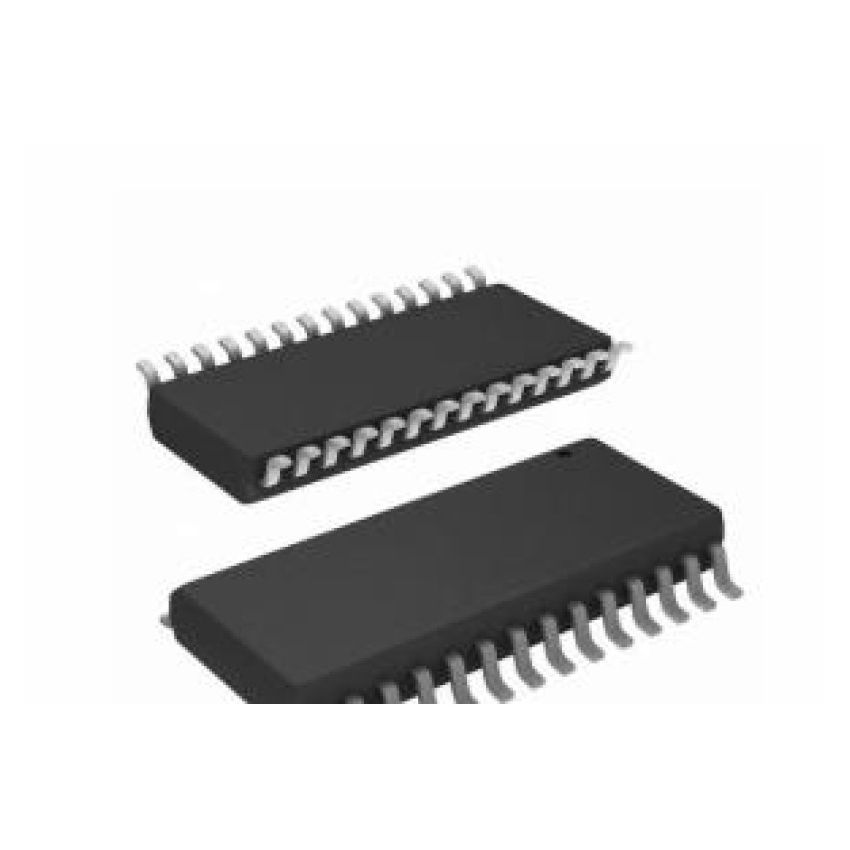

IR2233STR Gate Driver 3Phase IGBT MOSFET Driver 1200V SOP28 Infineon

The IR2233STR is a high-performance three-phase gate driver IC from Infineon Technologies, specifically designed to control power MOSFETs or IGBTs in three-phase bridge configurations. It is ideally suited for motor drives, HVAC, UPS systems, and industrial inverter applications operating up to 1200V.

Key Features:

• 3-phase high-voltage gate driver IC with integrated current sense amp
• Floating channels for bootstrap operation up to 1200V
• UVLO protection on all high and low side drivers
• Fault reporting with shutdown output
• 2.4V logic compatible inputs with matched propagation delay
• Compact SOP-28 surface mount package

Additional Specifications:

• Package Type: SOP-28
• Supply Voltage: 10V to 20V
• Current: 0.5A
• Type: 3-Phase High-Side and Low-Side Gate Driver
