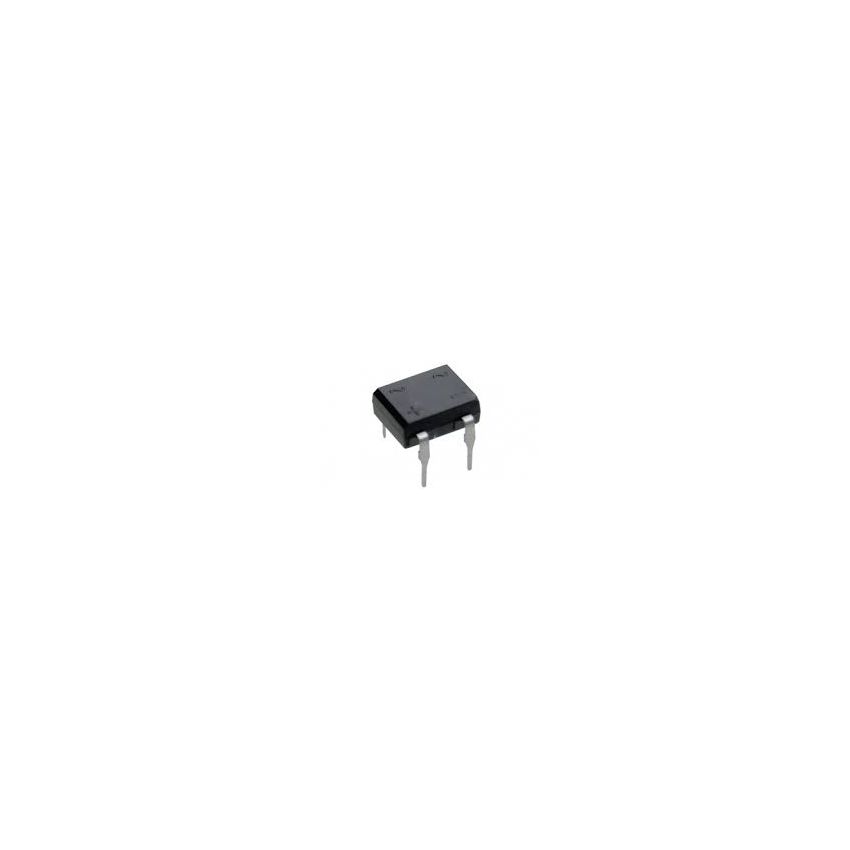

DI158 DIP-4 1000V, 1.5A Single-Phase Bridge Rectifier

The DI158 DIP-4 is a glass-passivated single-phase bridge rectifier designed for voltage rectification in AC to DC conversion applications. Rated for a maximum reverse voltage of up to 1000V and a current rating of 1.5A, this bridge rectifier provides reliable and efficient performance in various electronic devices. Its molded plastic case ensures low-cost construction with high durability, and the device is recognized for meeting stringent environmental standards.

The rectifier features low leakage and high surge overload capacity, making it ideal for use in printed circuit boards (PCBs). Its DIP-4 package allows for easy integration in through-hole mounted designs, and polarity symbols are marked on the body for clear identification during installation.

This rectifier is perfect for power supply circuits and is designed to exceed the requirements of MIL-S-19500/228 standards, ensuring superior performance even in demanding environments.

Key Features :

• Voltage Range: 50V to 1000V, allowing flexibility in high-voltage applications.
• Current Rating: 1.5A, suitable for moderate power conversion tasks.
• Low Leakage: Minimal reverse current leakage for better efficiency.
• Surge Overload Rating: Capable of handling up to 50 amperes peak surge, ensuring protection during transient conditions.
• DIP-4 Package: Compact and easy-to-use through-hole package for PCB mounting.
• Environmental Compliance: Exceeds MIL-S-19500/228 environmental standards, ensuring reliability and durability.
