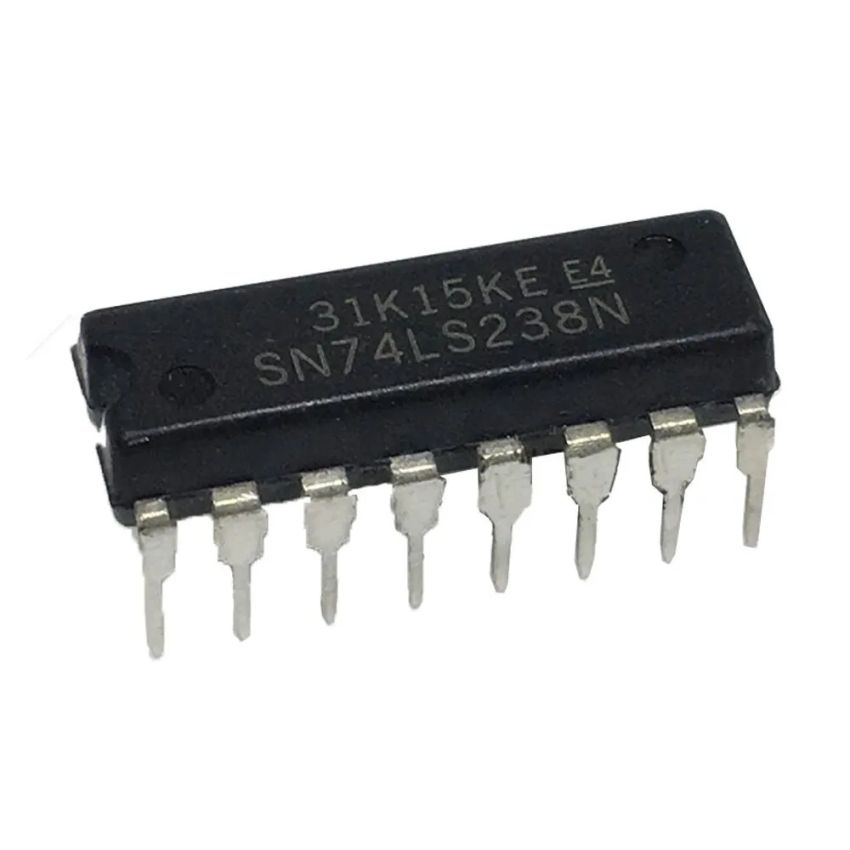

74LS238, 3-to-8 Line Decoder/Demultiplexer, DIP-16

The 74LS238 is a 3-to-8 line decoder/demultiplexer IC, designed for address decoding, data routing, and signal selection applications. With 3 binary inputs (A0, A1, A2), it selects one of eight active-low outputs (Y0-Y7), simplifying the process of signal distribution in digital circuits. The device includes three enable inputs (E1, E2, and E3), allowing for cascading multiple ICs to expand the output range or independently control each unit. Operating with 5V TTL logic, the 74LS238 ensures seamless compatibility with standard digital systems. Built using low-power Schottky technology, this IC provides fast performance while minimizing power consumption. Its DIP-16 package makes it ideal for use in memory address decoding, data multiplexing, and digital logic control circuits.

• 3-to-8 Line Decoder/Demultiplexer – Converts 3 binary inputs into one of eight active-low outputs, ideal for memory and data routing applications.
• Multiple Enable Inputs – Includes three enable inputs for cascading and flexible operation in complex circuits.
• TTL-Compatible Outputs – Designed to work with standard 5V TTL logic systems.
• Active-Low Outputs – Ensures reliable operation in negative logic circuits.
• Compact DIP-16 Package – Easy-to-integrate through-hole design for prototyping and PCB mounting.
• Low Power Consumption – Low-power Schottky technology minimizes energy usage while maintaining fast switching speeds.
