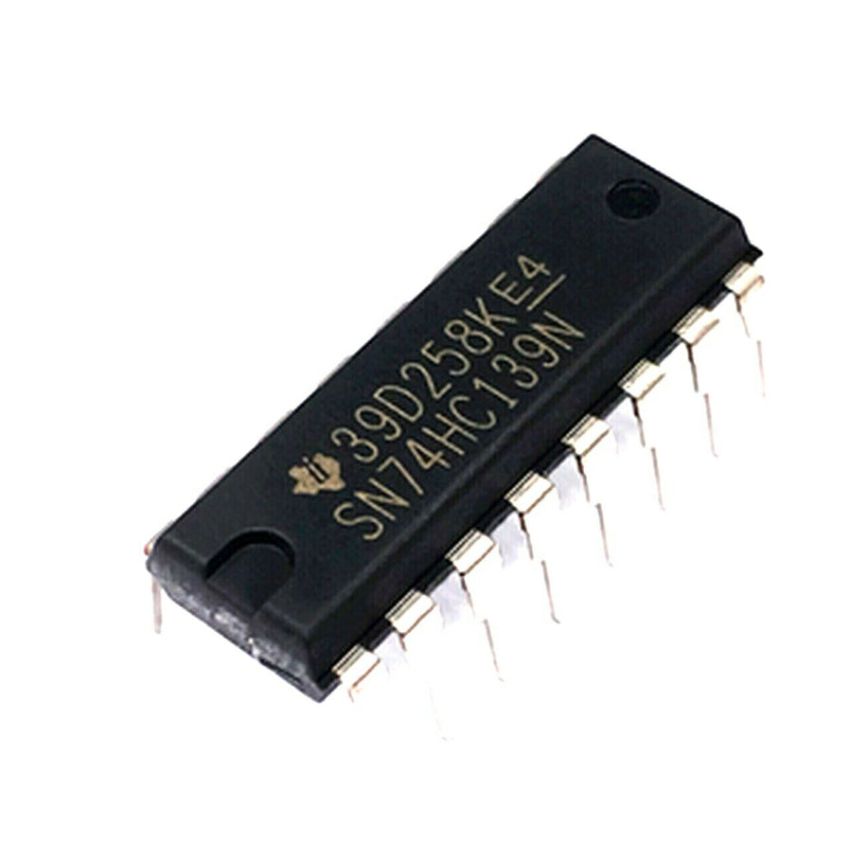

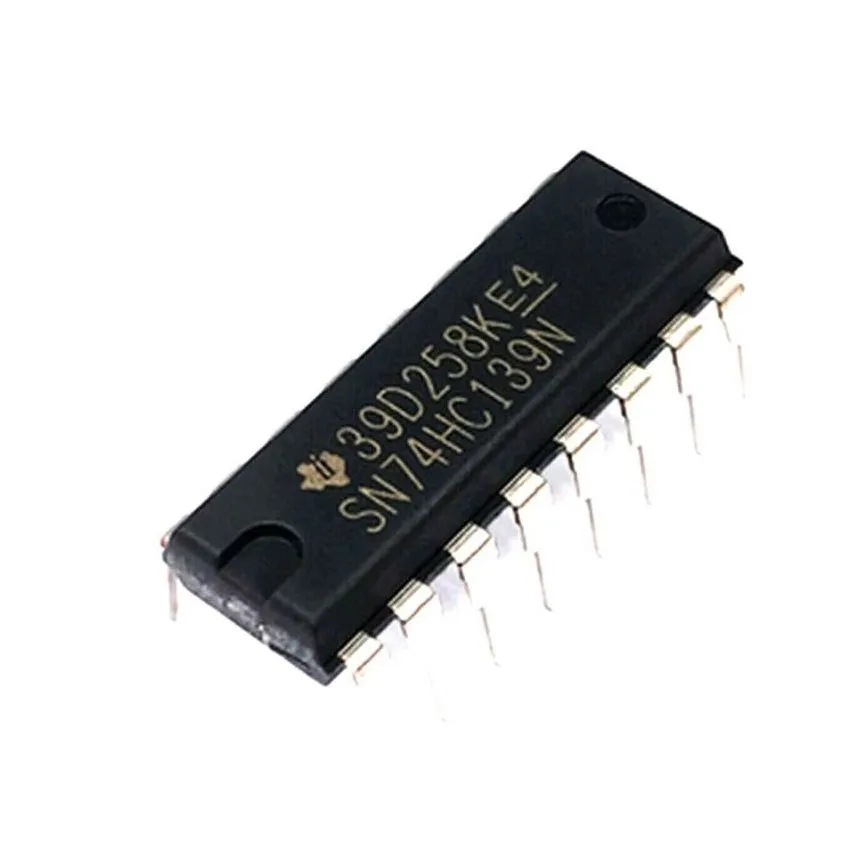

SN74HC139N,High-Speed Dual 2-to-4 Line Decoder/Demultiplexer,DIP-16

The SN74HC139N is a high-speed CMOS dual 2-to-4-line decoder/demultiplexer designed for data routing and memory decoding applications. Each decoder operates independently, converting 2-bit binary inputs into four active-low outputs, simplifying logic circuit designs.

Encased in a DIP-16 package, the SN74HC139N supports a supply voltage range of 2V to 6V, ensuring compatibility with both CMOS and TTL logic systems. Its high-speed performance and low power consumption make it an ideal choice for digital systems in industrial, consumer, and educational applications.

• Dual Independent Decoders: Each decoder handles two input lines and four output lines, allowing efficient data routing.
• Active Low Outputs: Simplifies cascading and integration into other logic systems.
• Wide Voltage Range: Operates efficiently from 2V to 6V, suitable for CMOS and TTL compatibility.
• Compact DIP-16 Package: Through-hole design for easy prototyping and integration.
• High-Speed Operation: Ensures fast response times in memory decoding and data-routing applications.
• Low Power Consumption: Optimized for energy-efficient operation in digital systems.
