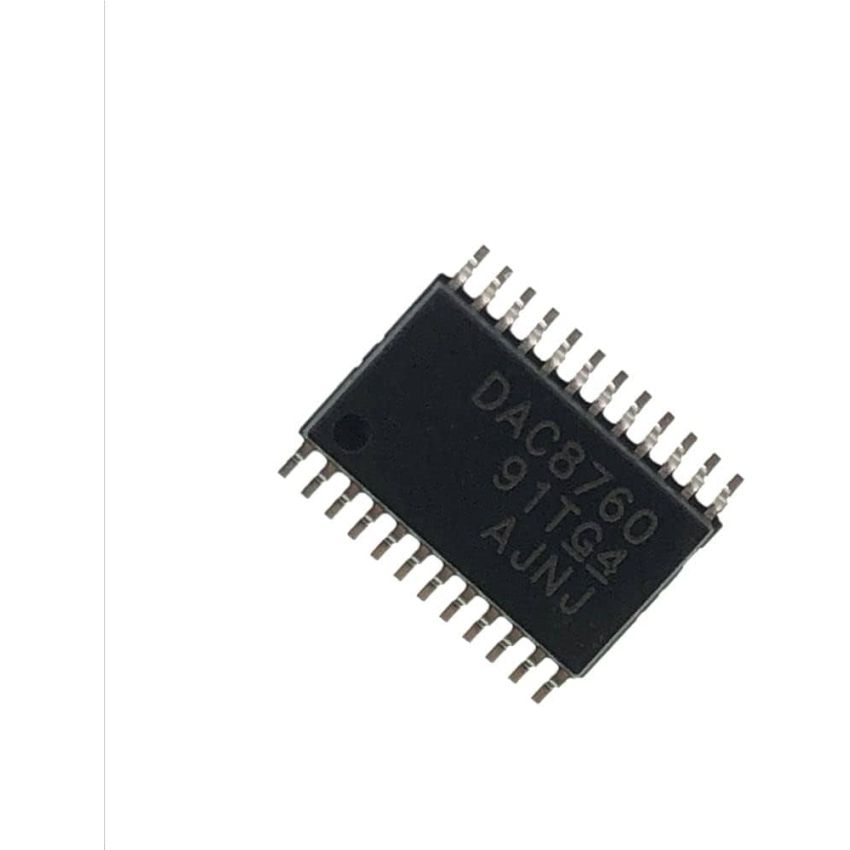

DAC8760,Digital To Analog Converter,4-20mA,TSSOP-24

The DAC8760 is a high-performance 16-bit digital-to-analog converter (DAC) designed to meet the demanding requirements of industrial process control applications. It offers both voltage and current outputs, making it versatile for a wide range of use cases such as programmable logic controllers (PLCs), sensors, and transducers. With support for industry-standard 4-20mA current loops and various voltage ranges, the DAC8760 provides flexibility in design and implementation.

This DAC features advanced reliability mechanisms, including thermal shutdown, CRC error detection, and a watchdog timer, ensuring stable operation even in harsh industrial environments. The programmable slew rate and user calibration options allow precise tuning for specific applications. Additionally, the built-in HART compatibility enables seamless integration into communication systems for process automation.

Packaged in a compact TSSOP-24 footprint, the DAC8760 is ideal for space-constrained systems. It operates over a wide temperature range (-40C to +125C) and supports both single and dual power supply configurations. With its robust design and high precision, the DAC8760 is the perfect solution for modern industrial applications.

• High Precision Output: Supports 16-bit resolution for accurate digital-to-analog conversion in industrial applications.
• Dual Output Capability: Provides both current (4-20mA, 0-20mA, 0-24mA) and voltage output (0-5V, 0-10V,5V, 10V).
• Wide Operating Range: Operates with single or dual power supplies, ranging from +10V to +36V or 18V.
• Programmable Features: Includes programmable slew rate and user calibration for zero and gain registers.
• Reliability Features: Built-in thermal shutdown, CRC error detection, and watchdog timer for robust performance in critical environments.
• Compact TSSOP-24 Package: Ideal for space-constrained designs with a wide operating temperature range (-40C to +125C).
