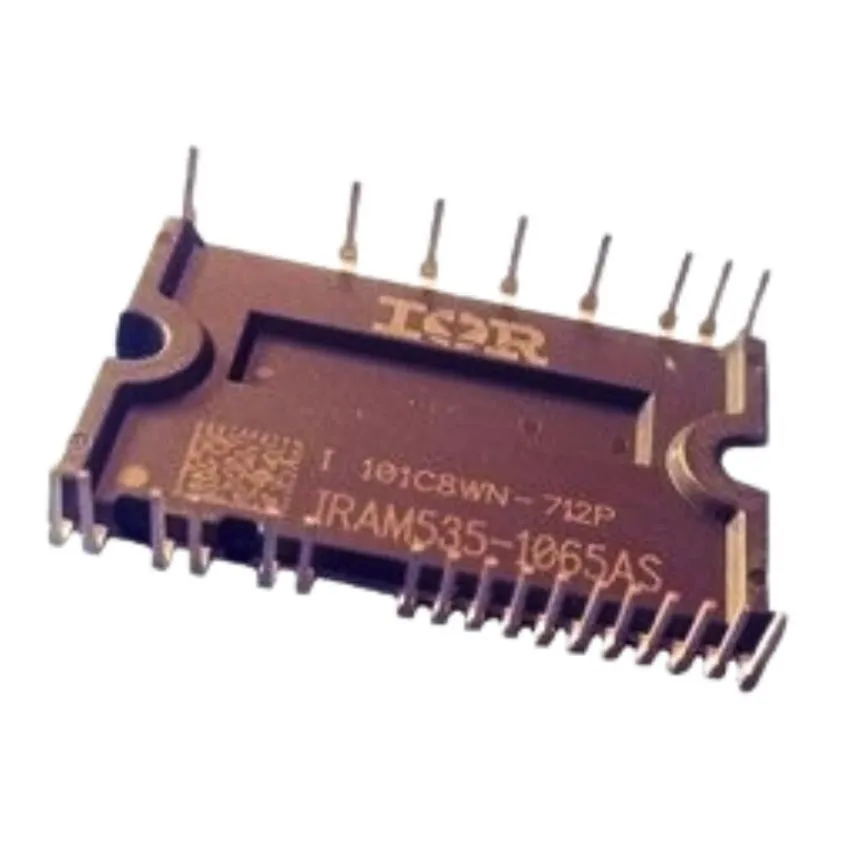

IRAM535-1065AS,Intelligent Power Module,600V,DIP-25

The IRAM535-1065AS is a highly integrated Intelligent Power Module (IPM) designed for controlling electric motors. Featuring built-in IGBT drivers, control circuitry, and power transistors, this module simplifies the design of motor control systems. It is housed in a compact DIP-25 package that reduces space requirements and simplifies assembly. Capable of operating at up to 600V, it is ideal for a variety of motor control applications, from industrial equipment to HVAC systems. The IRAM535-1065AS offers advanced protection features such as under-voltage and over-current protection, ensuring safe and reliable operation. With optimized switching characteristics, this module enhances energy efficiency, making it a perfect solution for modern energy-conscious applications.

• Integrated Power Module: Combines IGBT drivers, control circuits, and power transistors for efficient motor control.
• Compact Design: Encased in a standard DIP-25 package, saving space and reducing circuit complexity.
• High Voltage Operation: Supports up to 600V, suitable for industrial motor control applications.
• Efficient Performance: Optimized for low-loss switching, enhancing energy efficiency.
• Integrated Protection: Includes under-voltage and over-current protection for safe operation.
• Thermal Management: Built-in features for effective heat dissipation and enhanced module lifespan.
