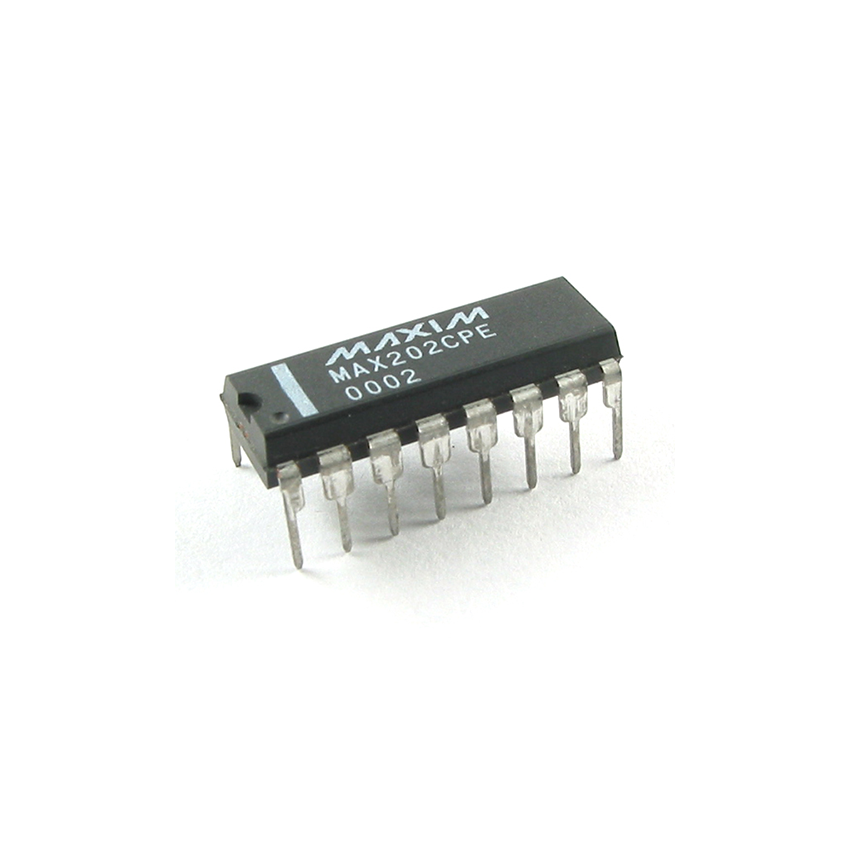

MAX202CPE, RS-232 Transceiver, 16-Pin DIP Package

The MAX202CPE is an RS-232 transceiver that includes an integrated charge pump, allowing it to operate from a single +5V power supply. It provides two drivers and two receivers, facilitating full-duplex serial communication. The device supports data rates up to 120 kbps and requires four external 0.1 uF capacitors for the charge pump. Its low power consumption and standard 16-pin DIP package make it suitable for various applications, including battery-powered and handheld equipment. Key Features :

• Dual Driver/Receiver – Provides two drivers and two receivers for RS-232 communication.
• Single +5V Power Supply – Operates from a single +5V supply, simplifying power requirements.
• Integrated Charge Pump – Eliminates the need for dual power supplies by generating necessary voltage levels internally.
• High Data Rate – Supports data rates up to 120 kbps, suitable for various serial communication applications.
• Low Power Consumption – Designed for efficient operation with minimal power usage.
• Standard 16-Pin DIP Package – Encased in a 16-pin Dual In-Line Package for straightforward PCB integration.
