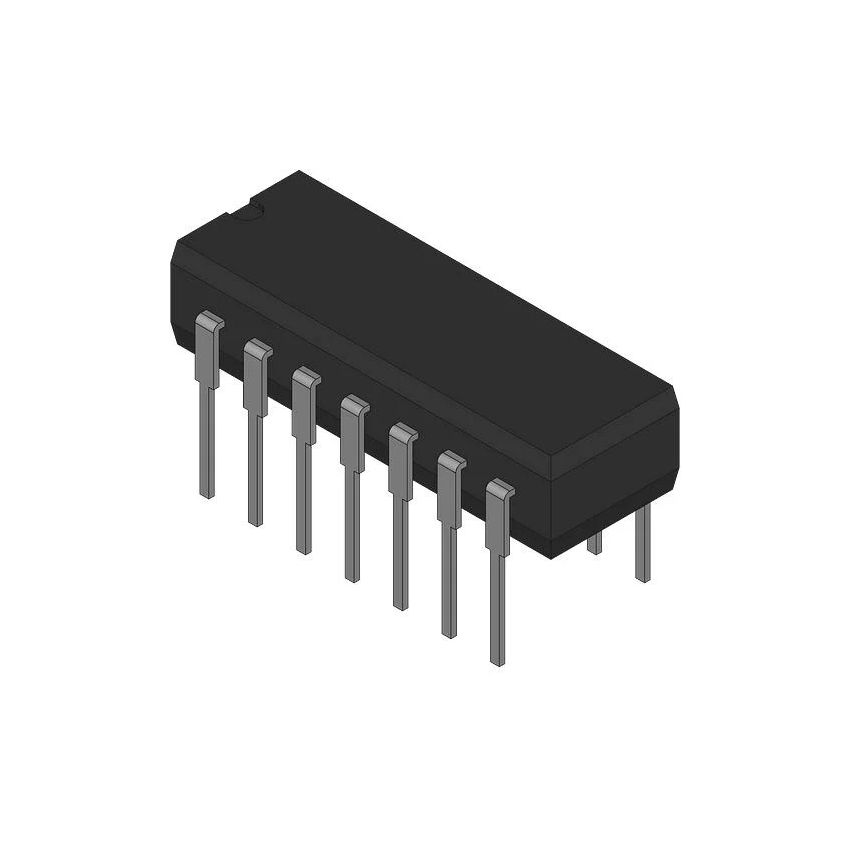

CD40106BE Hex Schmitt Trigger Inverter DIP14 CMOS 3V to 15V

The CD40106BE is a CMOS hex Schmitt trigger inverter from Texas Instruments, consisting of six independent inverters with hysteresis input characteristics. Each gate functions as a standard inverter, but with built-in positive feedback (hysteresis), making the device highly stable and immune to input noise and slow transitions.

Key Features:

• Six independent Schmitt trigger inverters in one package
• Hysteresis on input for noise immunity and slow edge tolerance
• Wide supply voltage range: 3V to 15V
• CMOS low-power consumption
• Compatible with standard CMOS and TTL logic levels
• High noise immunity: 0.45 VDD (typical)

Additional Specifications:

• Package Type: DIP-14
• Product Type: Hex Schmitt Trigger Inverter
• Input Low Voltage: 0.3V
• Input High Voltage: 0.7V
• Propagation Delay Time: 50ns
• Logic Gate Type: Inverter
• Supply Voltage: 3V to 15V
