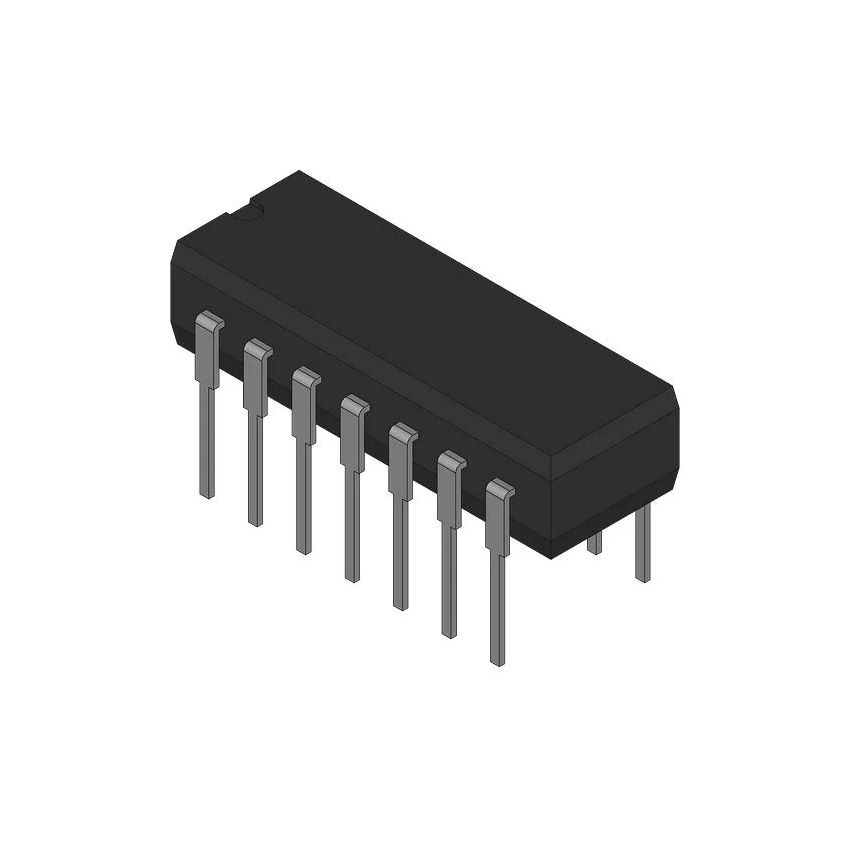

CD4011BP NAND Gate IC DIP14 CMOS Quad 2-Input

The CD4011BP is a CMOS quad 2-input NAND gate IC that includes four independent NAND gates in a single 14-pin DIP package. It is part of the 4000 CMOS logic series and is compatible with both TTL and CMOS levels, making it a versatile choice for many digital logic applications.

Key Features:

• Four independent 2-input NAND gates in one IC
• Wide supply voltage range: 3V to 15V
• Standard CMOS noise margin and low power dissipation
• TTL and CMOS input compatibility
• Propagation delay ~60ns at VDD = 10V
• High noise immunity (0.45 VDD typ)

Additional Specifications:

• Package Type: DIP-14
• Product Type: Quad 2-Input NAND Gate
• Input Low Voltage: 1.5V
• Input High Voltage: 3.5V
• Propagation Delay Time: 60ns
• Logic Gate Type: NAND
• Supply Voltage: 3V to 15V
