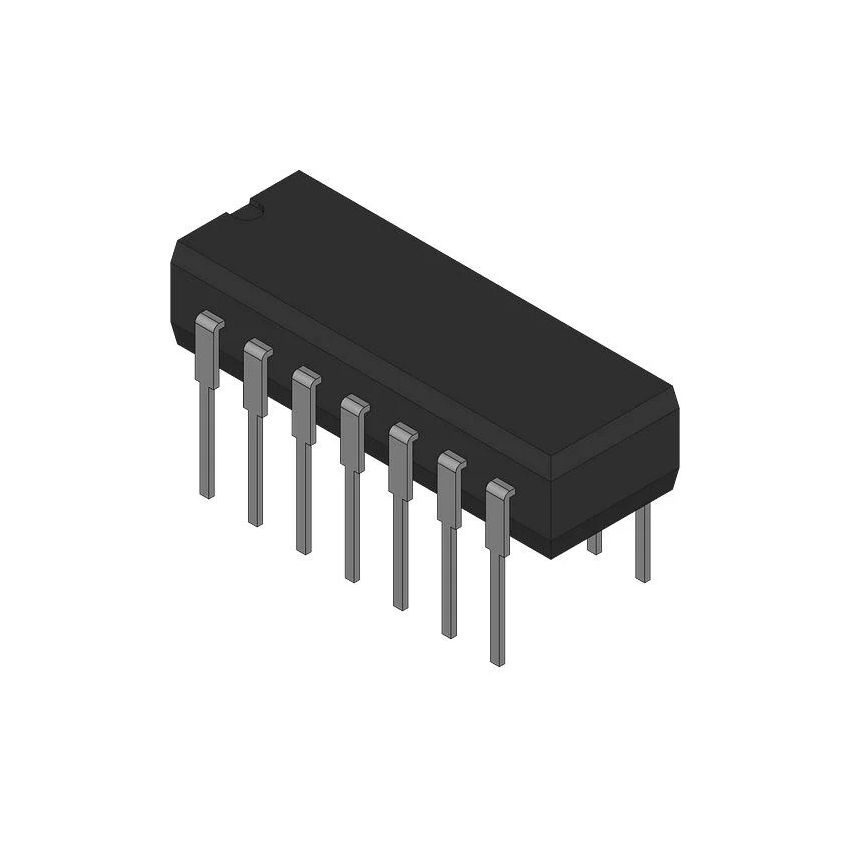

PC74HCT107P Dual JK Flip-Flop DIP14 Positive Edge Triggered Preset Clear

The PC74HCT107P is a dual JK flip-flop with reset and set functions, built using high-speed CMOS technology and pin-compatible with TTL devices. Each flip-flop features independent J, K, clock (CP), asynchronous set (SD), and clear (CD) inputs and Q/Q\ outputs.

Key Features:

• Dual JK flip-flop with reset and set (asynchronous)
• High-speed CMOS compatible with TTL inputs
• Edge-triggered flip-flop with toggle capability
• Low power consumption CMOS structure
• Standard 74HCT logic family pinout
• Noise margin of 1V at Vcc = 5V

Additional Specifications:

• Package Type: DIP-14
• Product Type: Dual JK Flip-Flop with Asynchronous Set and Reset
• Input Low Voltage: 0.8V
• Input High Voltage: 2.0V
• Propagation Delay Time: 16ns
• Logic Gate Type: JK Flip-Flop
• Supply Voltage: 5V
