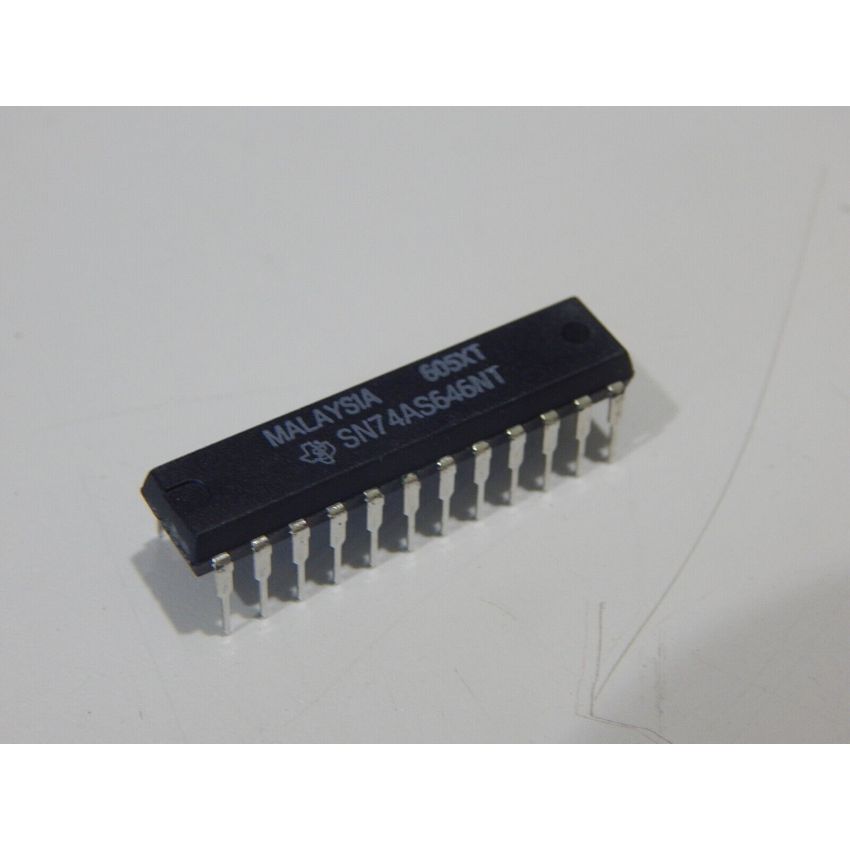

SN74AS646NT, Octal Bus Transceiver and Register, PDIP-24 Package

The SN74AS646NT is an octal bus transceiver and register designed for asynchronous two-way communication between data buses. It integrates bus-transceiver circuits with D-type flip-flops and control circuitry, facilitating efficient data transfer and storage. The device features 3-state outputs, allowing multiple devices to share a common bus without interference. Belonging to the AS logic family, it offers high-speed operation suitable for various applications.

• Integrated Bus Transceiver and Register – Combines bus-transceiver circuits with D-type flip-flops for efficient data handling.
• 3-State Outputs – Features 3-state outputs, allowing for connection to multiple bus lines without interference.
• High-Speed Operation – Belongs to the AS logic family, offering fast propagation delay times.
• TTL-Compatible Inputs – Designed with TTL input levels, ensuring compatibility with standard logic levels.
• Standard PDIP-24 Package – Encased in a 24-pin PDIP package for easy integration into various designs.
• Versatile Control Logic – Includes control circuitry arranged for multipurpose applications.
