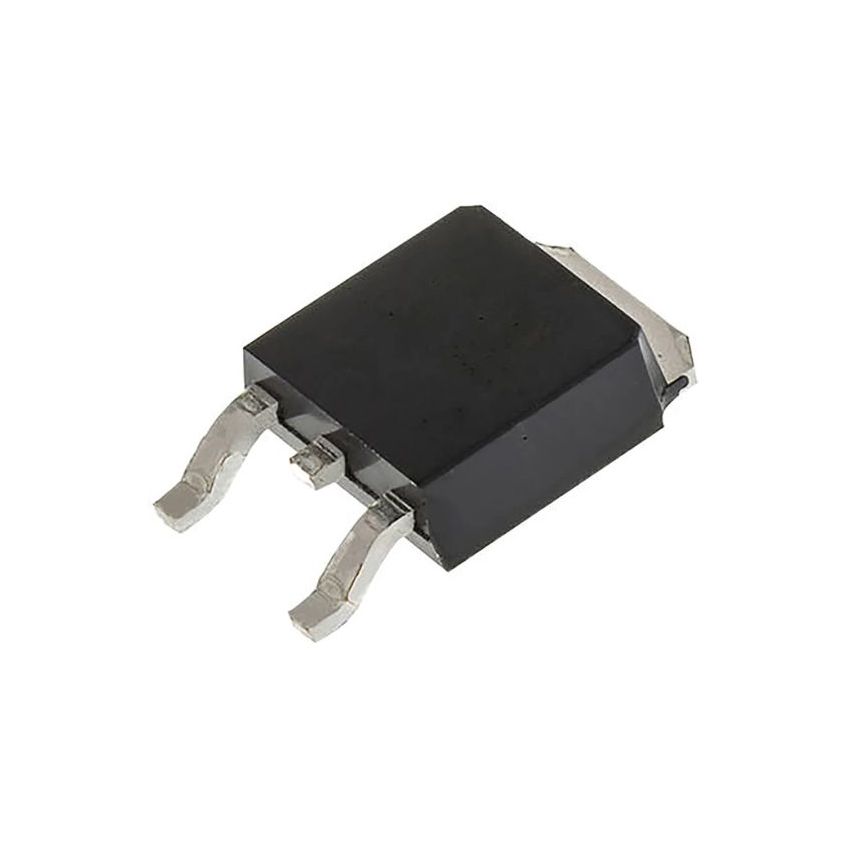

SPD09P06PL P Channel MOSFET TO252 60V 16A Low Rds On

The SPD09P06PL is a high-performance P-Channel Power MOSFET housed in a compact TO-252-2 (DPAK) package, designed for high-efficiency switching applications. This MOSFET offers a low Rds(on) of just 0.09Ω at a gate voltage of -10V, enabling minimal conduction losses and efficient power delivery.

Key Features:

• Low Rds(on) 0.09Ω max at Vgs = -10V
• High-speed switching for efficient power conversion
• 100% avalanche tested for ruggedness
• Suitable for automotive and power supply circuits
• RoHS compliant and halogen-free
• High current handling up to 16A continuous

Additional Specifications:

• Mounting Style: SMD
• Continuous Current Drain (Id): 16A
• Drain-Source Breakdown Voltage (Vds): -60V
• Gate-Source Threshld Voltage (Vgs th): -2V to -4V
• Power Dissipation: 45W
• Operating Temprature: -55°C to +150°C
