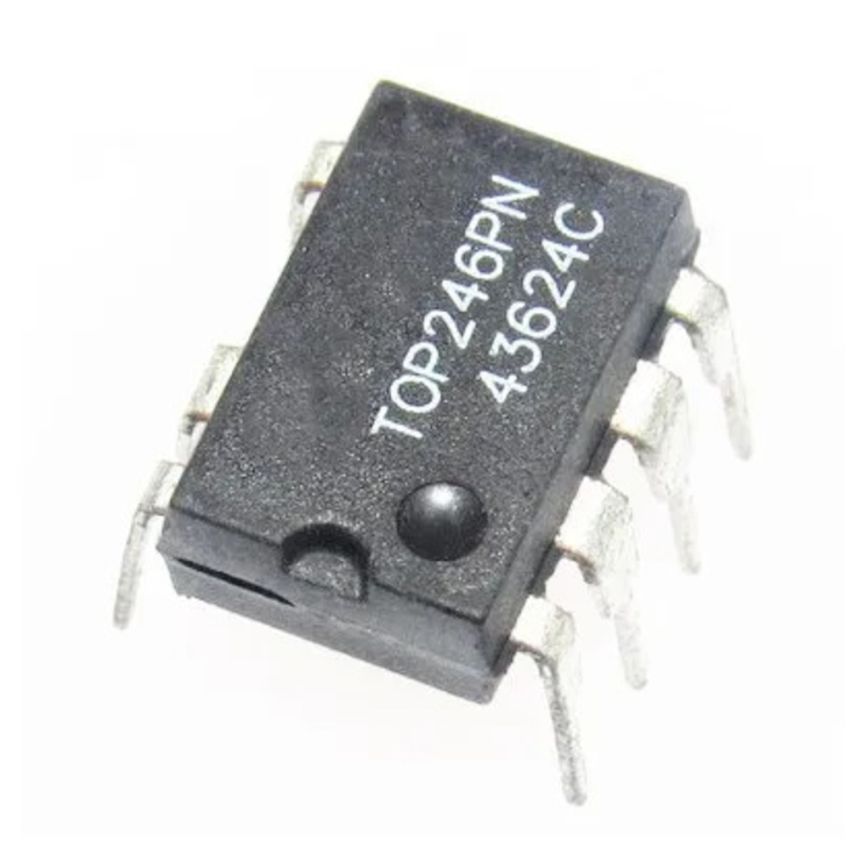

TOP246PN DIP-8-7 - High-Efficiency Off-Line Switcher, 132kHz, 85-265VAC

TOP246PN DIP-8-7 - High-Efficiency Off-Line Switcher, 132kHz, 85-265VAC

SKU
SCIx3239
Part Number
TOP246PN
Brand:
Generic
Categories:
Semiconductors, Ics, Power Management ICs
JOD 1.73
Be the first to review this product
Add to Wish List
Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

The TOP246PN is a highly efficient off-line switcher IC designed for low-power applications. It features an integrated high-voltage power MOSFET, PWM controller, and fault protection circuitry, making it ideal for AC-DC converters.

With a maximum switching frequency of 132kHz, it supports a wide input voltage range (85-265 VAC) and provides superior energy efficiency. This component is suited for compact designs without the need for heatsinks in most applications.

Key Features :

  • Wide Input Voltage Range: Supports 85-265 VAC, making it suitable for global power standards.
  • High Efficiency: Integrated high-voltage MOSFET and PWM control provide up to 90% efficiency in power conversion.
  • 132kHz Switching Frequency: Minimizes EMI and improves transformer design.
  • EcoSmart Technology: Reduces standby power consumption to less than 80 mW at 110 VAC.
  • Soft-Start Functionality: Reduces component stress during power-up, ensuring system longevity.
  • Comprehensive Protection: Includes over-temperature shutdown, line under-voltage detection, and over-voltage protection for safe operation in demanding environments.
More Information
Estimated Delivery Lead Time 4-6 Weeks
Package Type DIP-8
Type Off Line Switcher
IC type N/A
Function N/A
Current <=6.5A
