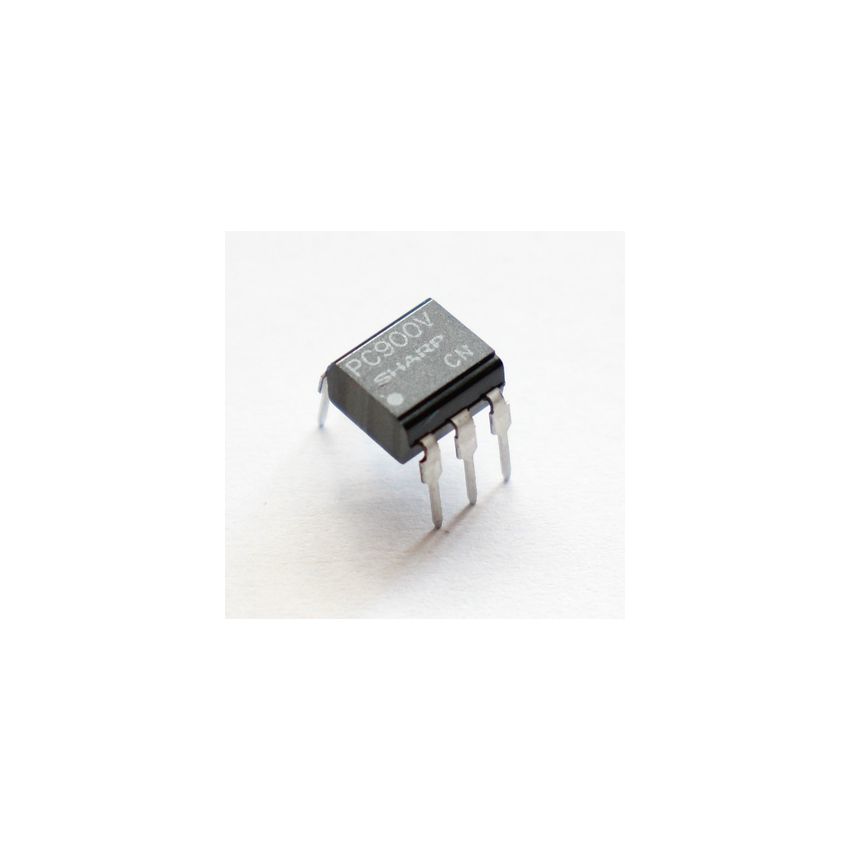

PC900V DIP-6 Photocoupler - 16V Supply Voltage,50mA Output Current

SKU
SCIx3068
Part Number
PC900V
Brand:
In stock
Only 1 left

Guarantee safe & secure checkout

The PS2501-2 is a high-performance phototransistor optocoupler featuring dual independent channels, making it perfect for compact and efficient circuit designs. Each channel consists of a GaAs light-emitting diode coupled with an NPN phototransistor, delivering reliable performance for a variety of applications.

With its high isolation voltage of 5,000 VRMS and the ability to handle up to 80V collector-emitter voltage, this optocoupler is ideal for high-voltage environments. The low forward voltage of 1.17V (typical) ensures low power consumption, making it a great choice for energy-efficient systems.

The PS2501-2 is housed in a DIP-8 package for through-hole mounting, simplifying installation and ensuring compatibility with standard PCB layouts. Whether you're working on power supplies, industrial control systems, or telecommunication devices, the PS2501-2 provides reliable isolation and signal transfer for your designs.

Key Features :
  • High Isolation Voltage: Rated at 5,000 VRMS, providing robust isolation for high-voltage applications.
  • Dual Channels: Features two independent optocoupler channels in a single DIP-8 package, ideal for compact designs.
  • High Voltage Capability: Supports up to 80V collector-emitter voltage (VCEO), ensuring reliability in demanding circuits.
  • Compact DIP-8 Package: Suitable for through-hole mounting, allowing easy integration into a wide range of PCB designs.
  • Low Forward Voltage: Operates at a forward voltage (Vf) of just 1.17V (typical), minimizing power consumption.
  • Versatile Applications: Designed for power supplies, industrial automation, and telecommunication equipment.
Mounting Style Through Hole
